Log function



The log function can be used for:

  • Error searches

  • Commissioning programs

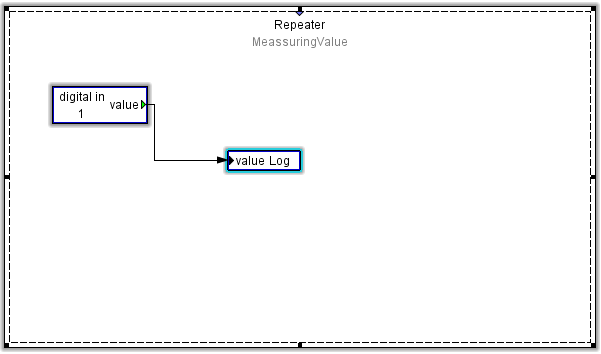

Program example: The result at digital input 1 is to be output in a log file.

images/download/attachments/251036740/jasic-log-en-version-1-modificationdate-1692273663000-api-v2.png

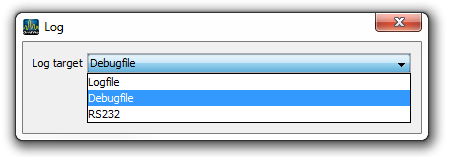

The log target can be set by double-clicking on the log module and can, for example, be checked in the Debug log.

images/download/attachments/251036740/jasic-log-file-en-version-1-modificationdate-1692273713000-api-v2.png
