Measured Values Export
Valid for
|
GridVis editions |
Software platform |
|
|
|
The measured values export function allows you to export the measured data from GridVis Desktop to the PDF, CSV, XLS and XLSX file formats. Proceed as follows to create a measured value export:
In the Other section, select the Measuring values export entry in the Exports area and click on the Configure button.

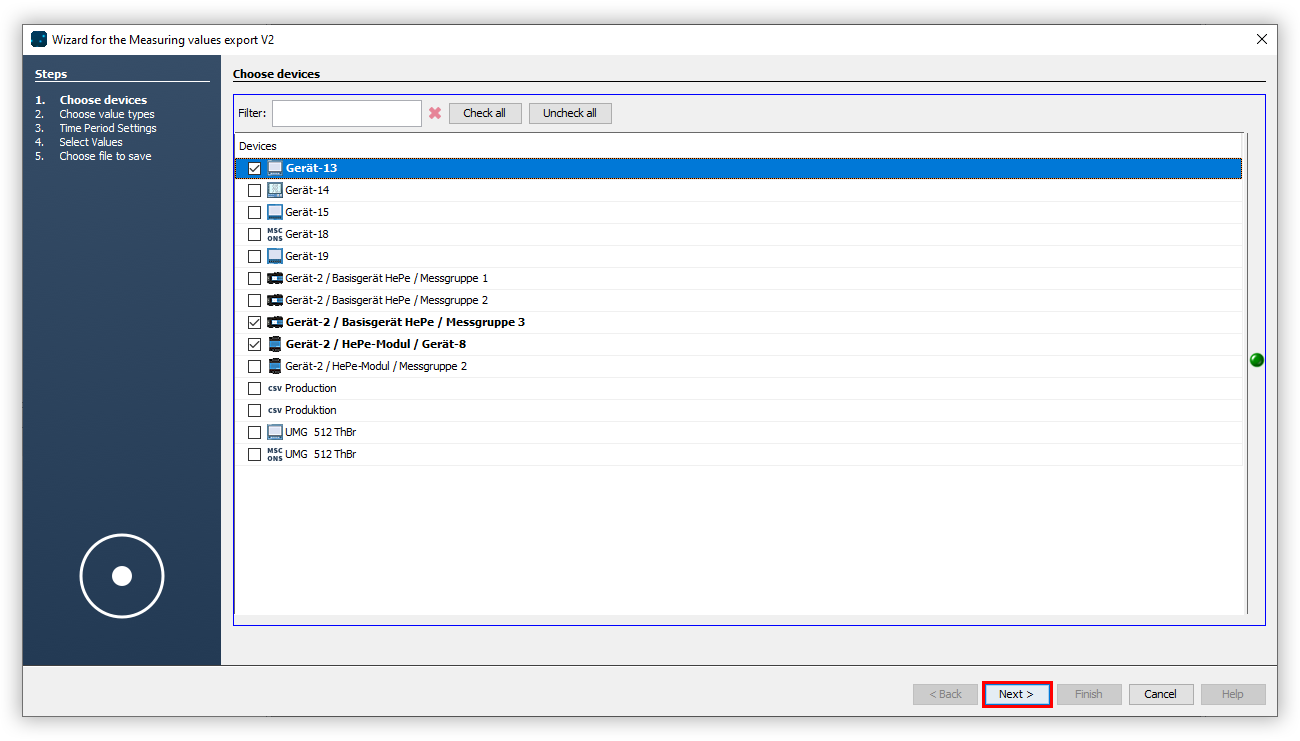

Choose the devices to be included in the export and click the Next button.

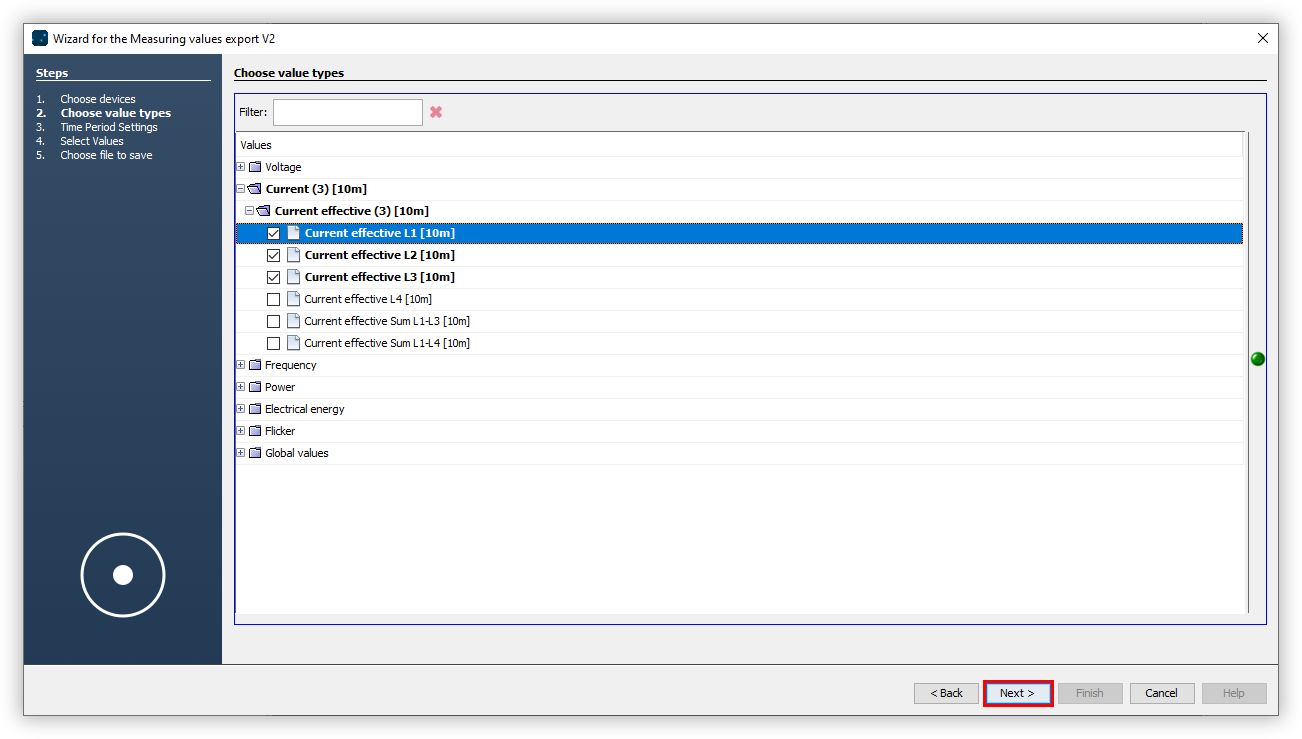

Use the folder structure and checkboxes to choose which measured values are to be included in the export. Then click the Next button.
Set the Time Period Settings for the export and then click the Next button.
Use the checkboxes to specify the desired set of values and click the Next button.
Choose the desired File format. The PDF, CSV, XLS and XLSX formats are available.
Choose whether the data export should be available on the web. Specify a file name for the data export and select a storage location.
Choose the File action for the export. If the file already exists, you can overwrite it or append the creation date and time to create a new file.
In the section Create data export, choose whether the data export should be created immediately. Finally, click the Finish button.
