General

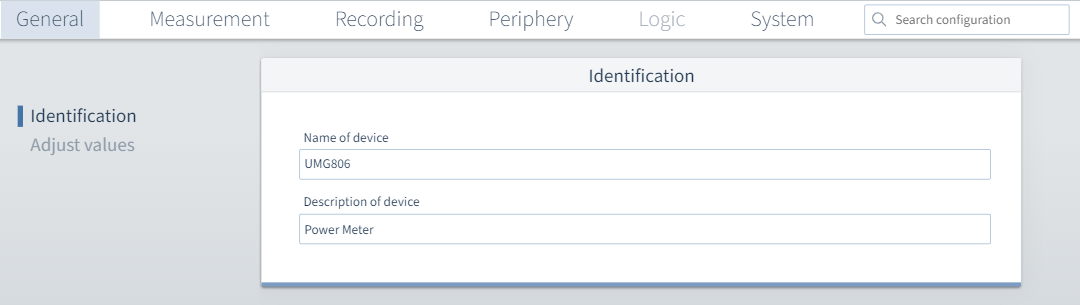

Identification

Name of the device: Enter the freely selectable device name (max. 255 characters).

Description of the device: If desired, enter a freely selectable description of the device (max. 255 characters).

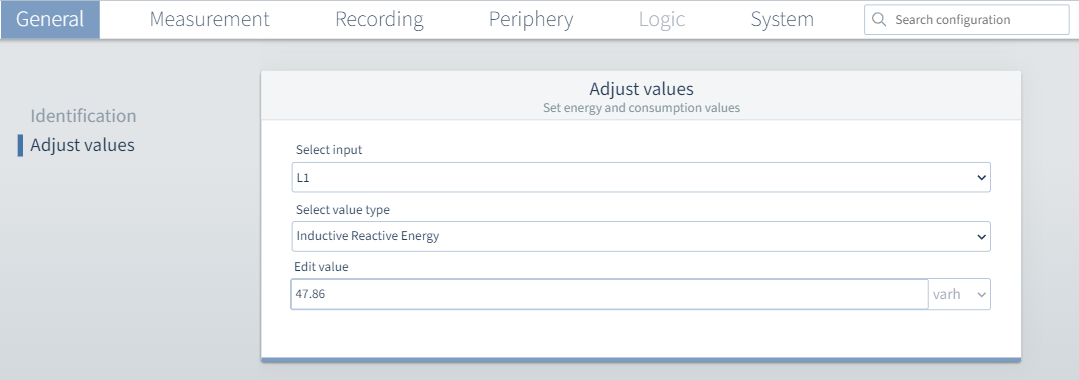

Setting values

Set consumption values for the individual phases and for the sum of phases L1 to L3 here.

Select input: Select the phase to be set. Possible selections are L1, L2, L3 and sum L1..L3.

Select value type: Choose from

• Capacitive reactive energy

• Apparent energy

• Consumed active energy

• Inductive reactive energy

• Delivered active energy

Edit value: Enter the values including decimal places here.

The unit is automatically set by the previously selected value type .
