Identification

Settings

• Device name

• Device description

• MaLo ID

• Calibration interval for MID *

Device name

To clearly distinguish a device, enter a name (max. 127 characters). The name is displayed in the header of the device display and in the GridVis® software.

Device description

Free text field for a more detailed description of the device function, location, etc. (max. 229 characters). The description is stored in the database and only displayed in the GridVis® software.

MaLo ID

In the German energy market, the market location identification number (MaLo ID) is the official designation for the place where energy is consumed or fed into the grid .

This replaces the metering point designation on the energy bill. The 11-digit number is on the electric or gas bill. The meter number remains the same.

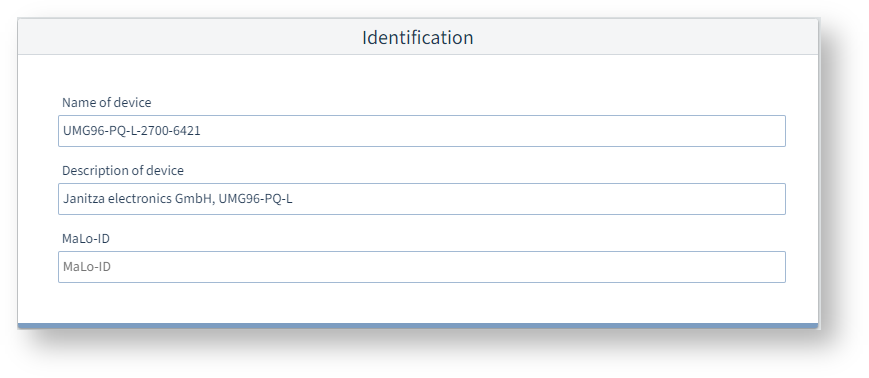

Example image: UMG 96-PA, UMG 96-PQ-L

Calibration interval for MID *

Here, you can enter the year when the MID measurement device must be recalibrated.

This field is for your information only, it is not evaluated automatically.

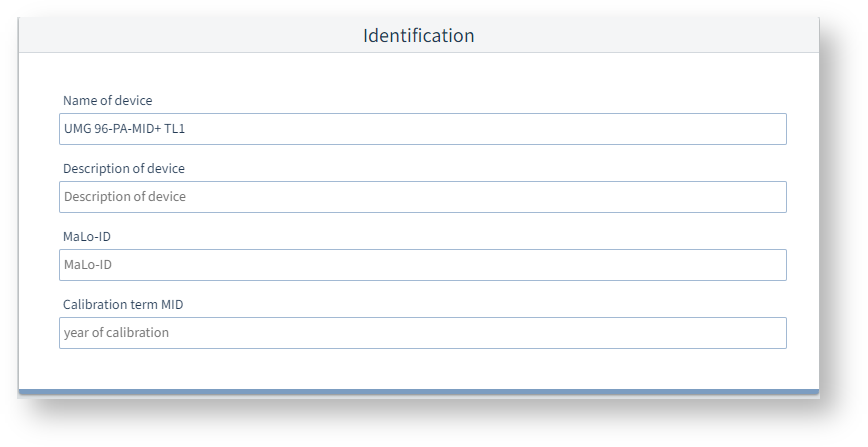

Example image: UMG 96-PA-MID+
