Digital outputs

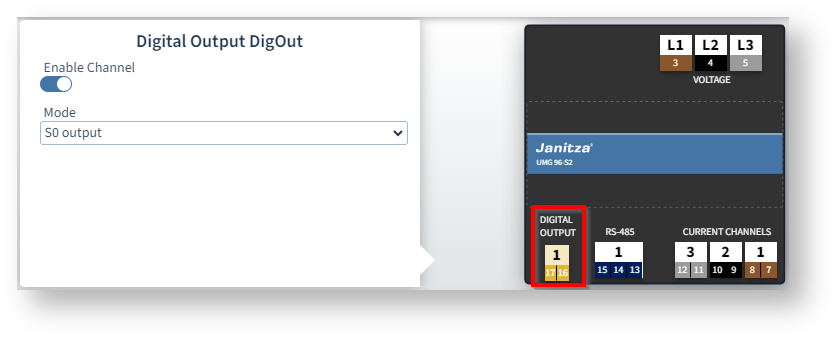

Click on the digital output in the device screen to open the digital output settings. Alternatively, click on the DO checkbox on the configuration card.
Mode
S0 output: The output operates as a pulse output. When a certain amount of active or reactive energy is reached, a pulse is issued at the output.

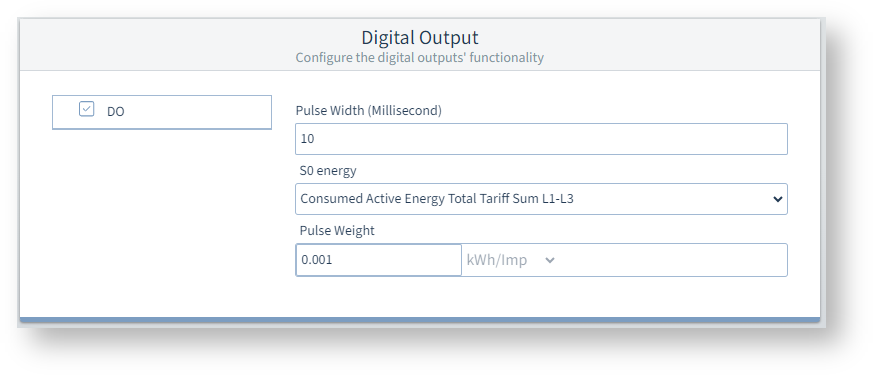

Pulse width
The pulse width in milliseconds must be processable by the receiving device. The pulse width is not configurable on the UMG 96-PA-MID+ .
Pulse valency
Enter the pulse valency (see user manual).
