GridVis 8.0

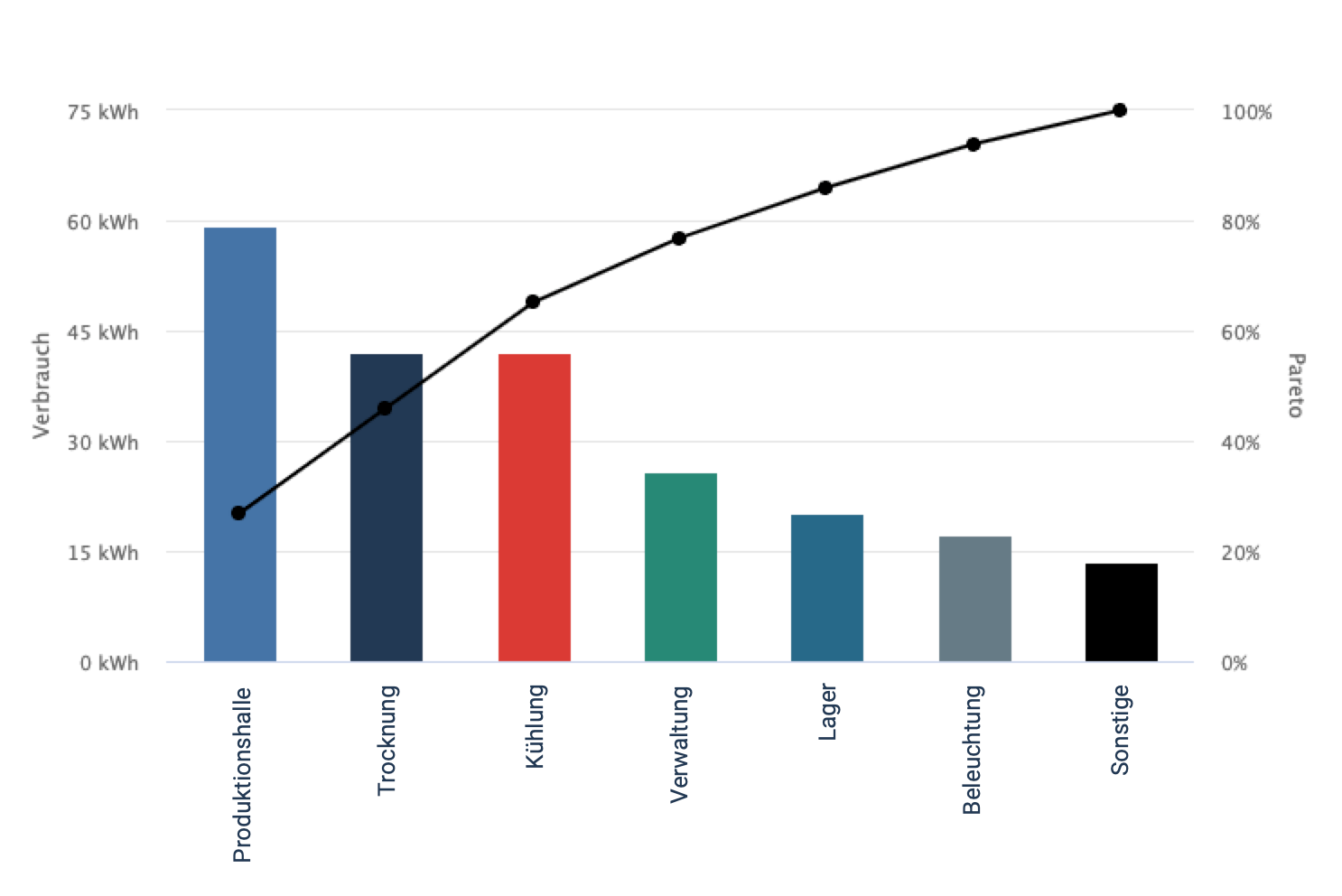

ABC analysis: Identify the largest consumers (from version 8.0.60)

The ABC analysis helps to identify the consumers that account for the largest share of the total consumption. The total consumption results from the up to 100 selectable devices and their energy values. With the help of the second Y-axis (Pareto), it is possible to read off what percentage of the total consumption has been achieved up to the respective point.

Report editor

Expert

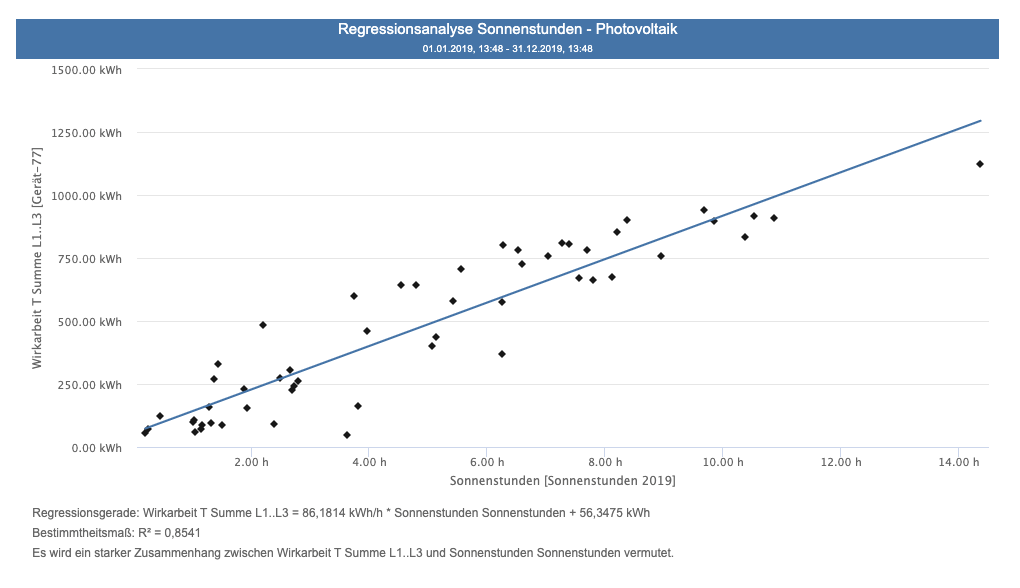

Detect dependencies with regression analysis (from version 8.0.80)

The regression analysis object can be used to investigate relationships between values. For example, it can be determined whether the quantity of goods produced had an influence on the energy consumption. To start a check, the corresponding two values must be selected and then a regression calculated. Afterwards, the displayed diagram and the regression line provide information on whether there is a correlation between the values and how pronounced it is. The object is currently in a beta stage, which means that further changes and adjustments can take place here in the future.

Report editor

Expert

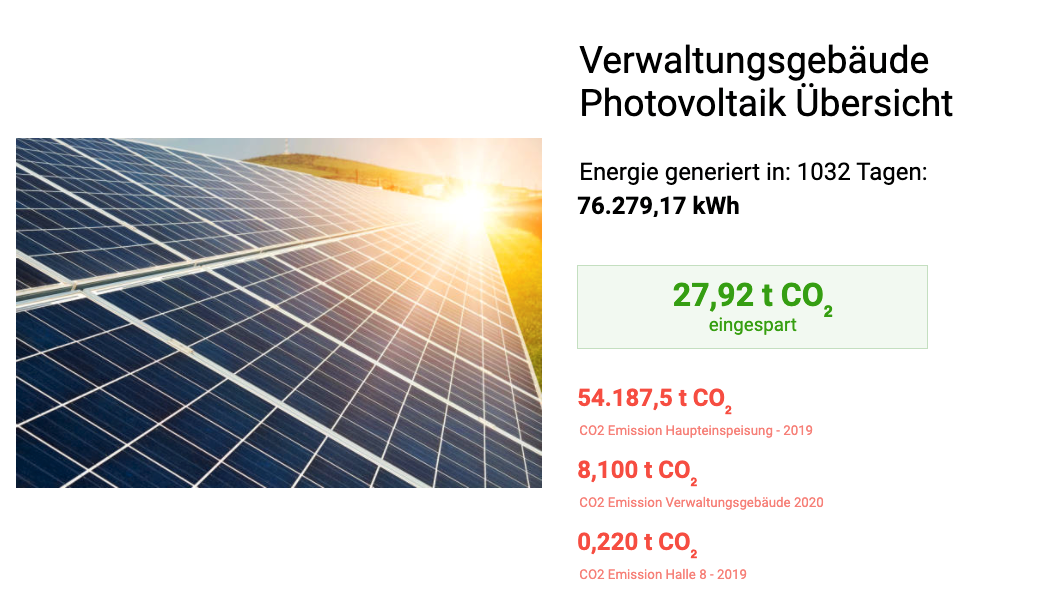

Reveal and visualize CO2 emission (from version 8.0.100)

The new CO2 object in the report editor can be used to visualize the CO2 emission caused by electricity consumption. An emission factor can be stored, which is offset against the selected energy value and then visualizes the emission for the desired period.

Report editor

Expert

Reuse and save reports with the import and export function (from version 8.0.60)

A created report can now be used in other projects with the new import and export function without having to create the report again. In addition to reusability, the export can also be used to create a backup of particularly important reports. Through the new "device exchange" within the report editor, a report can also be used in other GridVis projects.

Reports

Expert

Create reports automatically and send them by e-mail (from version 8.0.60)

Have your daily, weekly or monthly reports sent to you automatically. With automatic report generation and email notification, this is no problem. Once you have selected a schedule for automatic creation, you can configure up to 10 email addresses to which the report should be sent once created. This can be configured in the report settings.

Reports

Expert

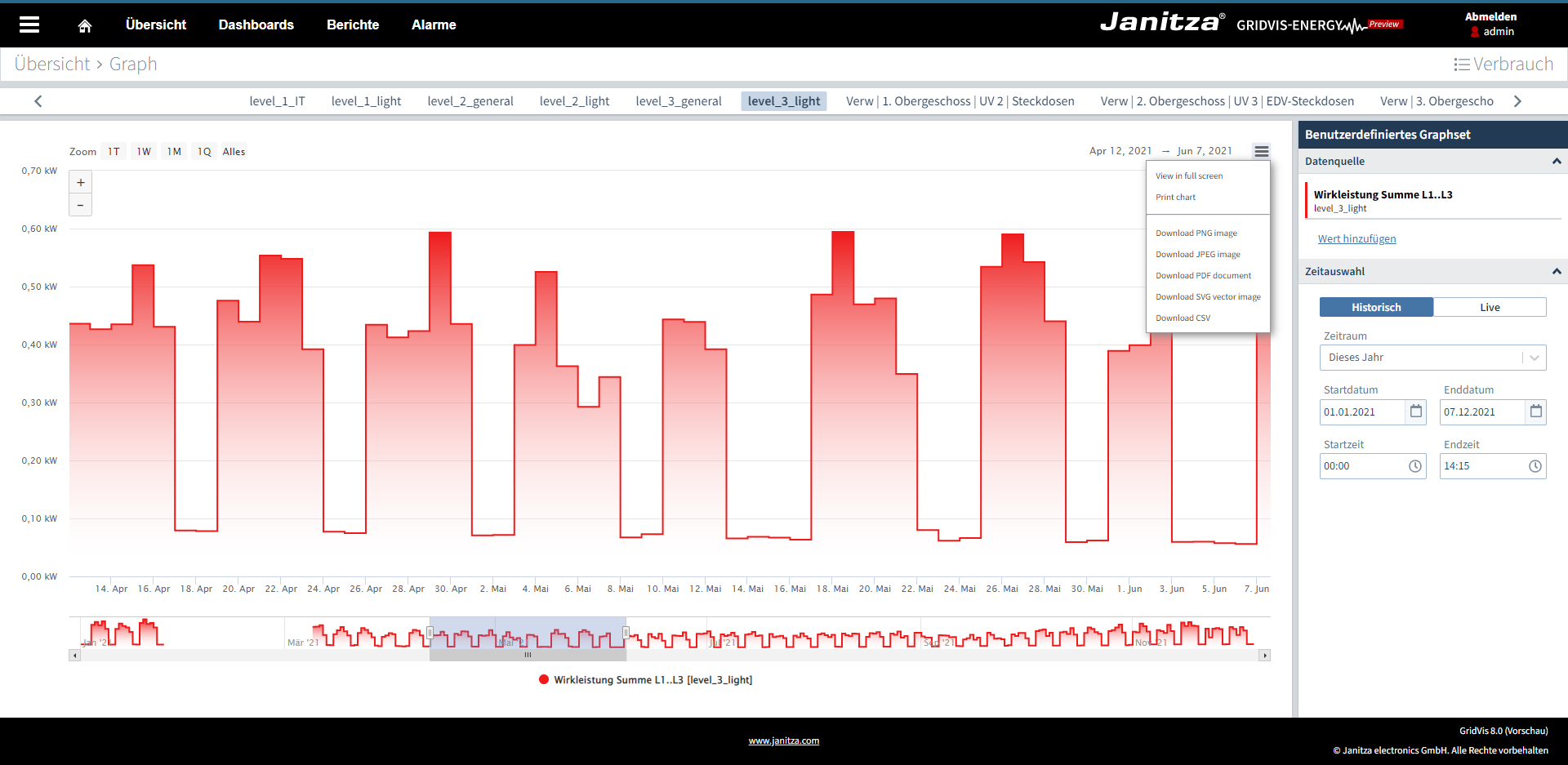

Print graphs, create as PDF or export as CSV or image file (from version 8.0.40)

With the new measurement value analysis, created graphs can be printed directly or saved as PDF. In addition, it is possible to store the energy and measurement data in a CSV file or save it in an image.

Graphs

Standard, Expert

Corporate license (from version 8.0.60)

Purchased licenses can be shared with other users within a company or organization. This gives other users the ability to license projects themselves and access the licenses. Access rights can be restricted for each user. Thus it is possible to give users only the possibility of licensing or to enable administrative rights.

License

Essentials, Standard, Expert

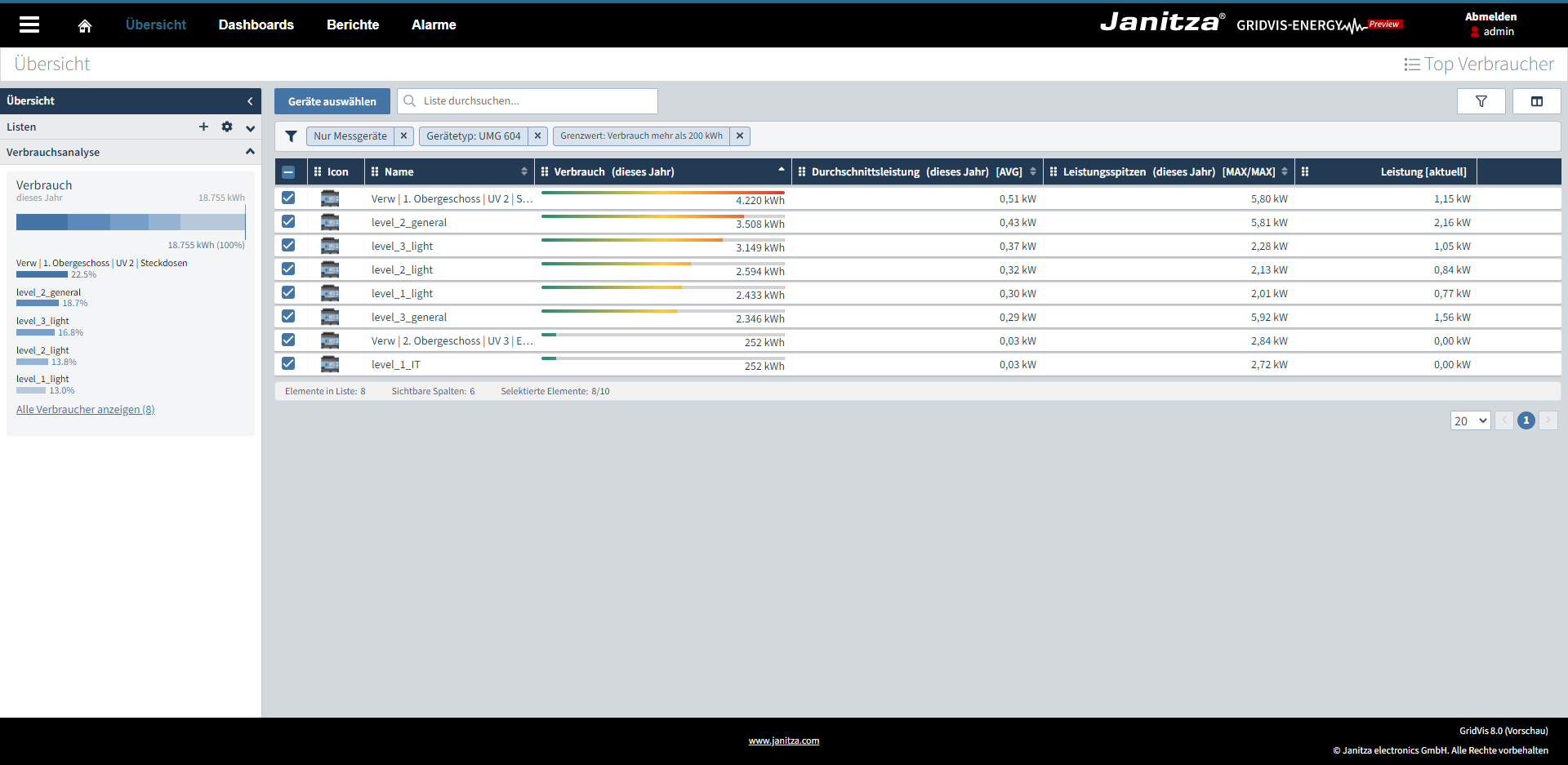

Totalize and analyze consumptions (from version 8.0.100)

The consumption analysis can be found in the sidebar directly in the overview. The function provides a bar chart for each column with a consumption value. The graphic shows the total consumption and can also be used for a "what if" analysis. With the help of the selection column, individual measuring points can be directly extracted from the total consumption and displayed. Individual consumers are displayed in an additional ranking list. The ranking shows the top consumers and their percentage share of the total consumption of all measuring points that are included in a list.

Device overview

Expert

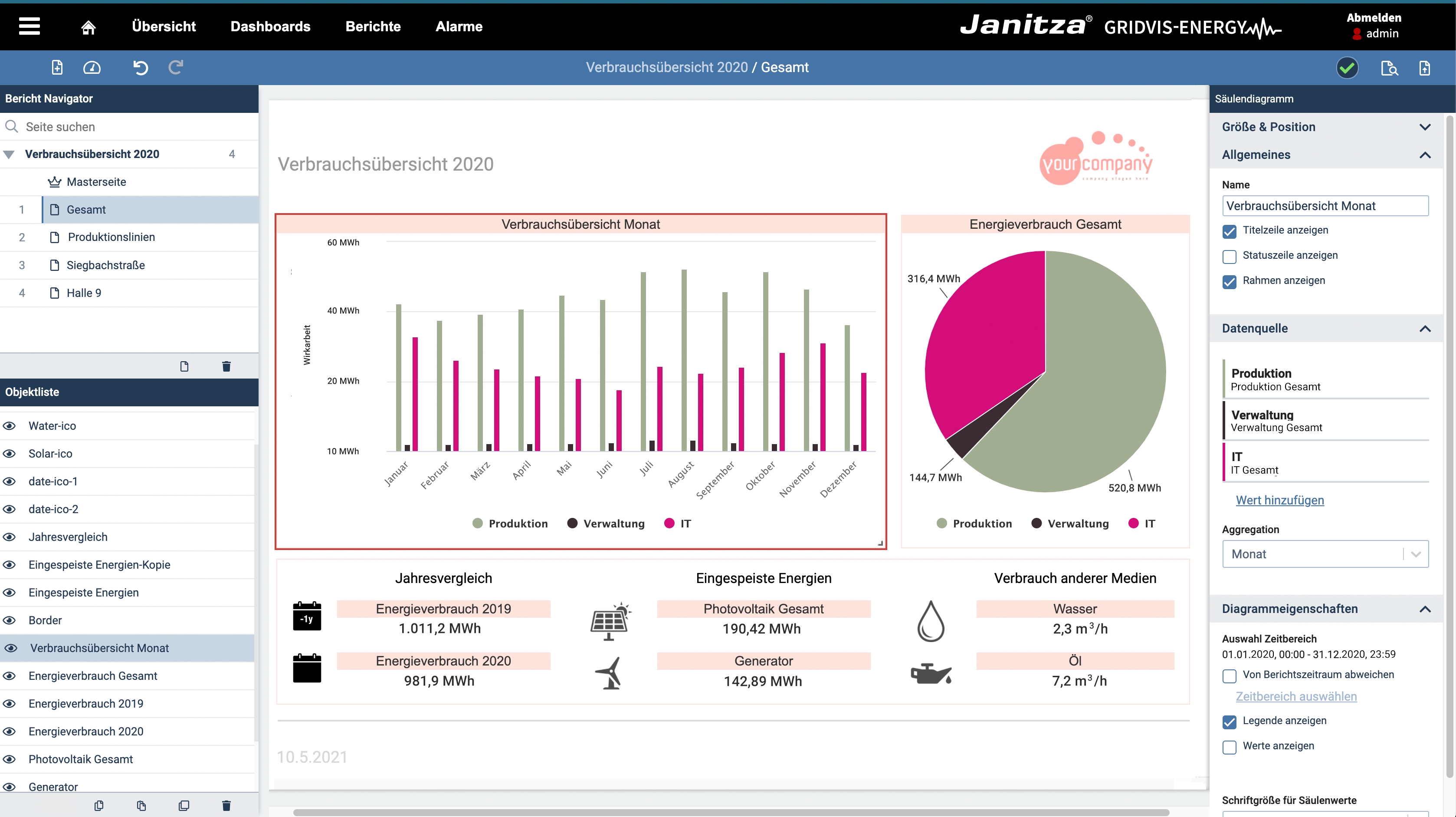

Editor for reports: Theming

With the Theming setting in the editor for reports, you configure graphic elements entirely according to the desired company CI. For example, standard colors, backgrounds, objects, headers, and font colors can be customized.

Report editor

Expert

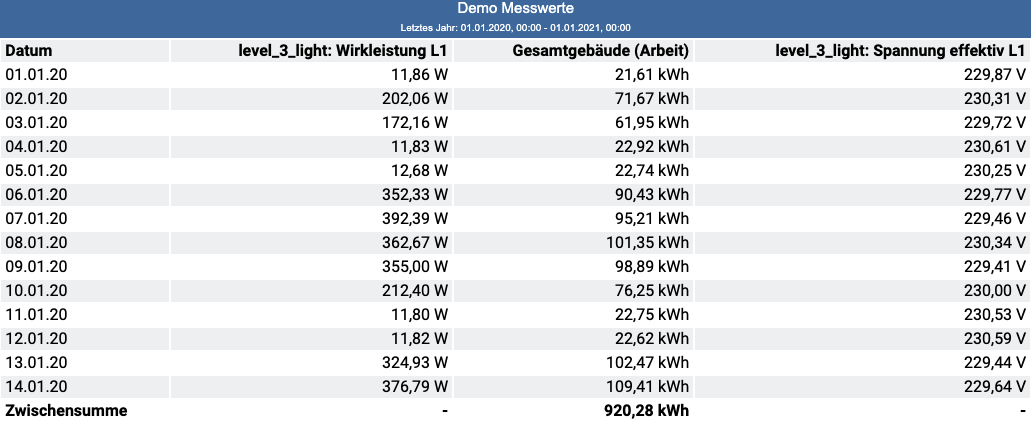

Editor for reports: Energy values and measured values table (new table object)

The new table object can be used for energy values and measured values. With the new object it is possible to design own tables and to display consumptions or average values, MIN. or MAX values numerically over a period of time.

Report editor

Expert

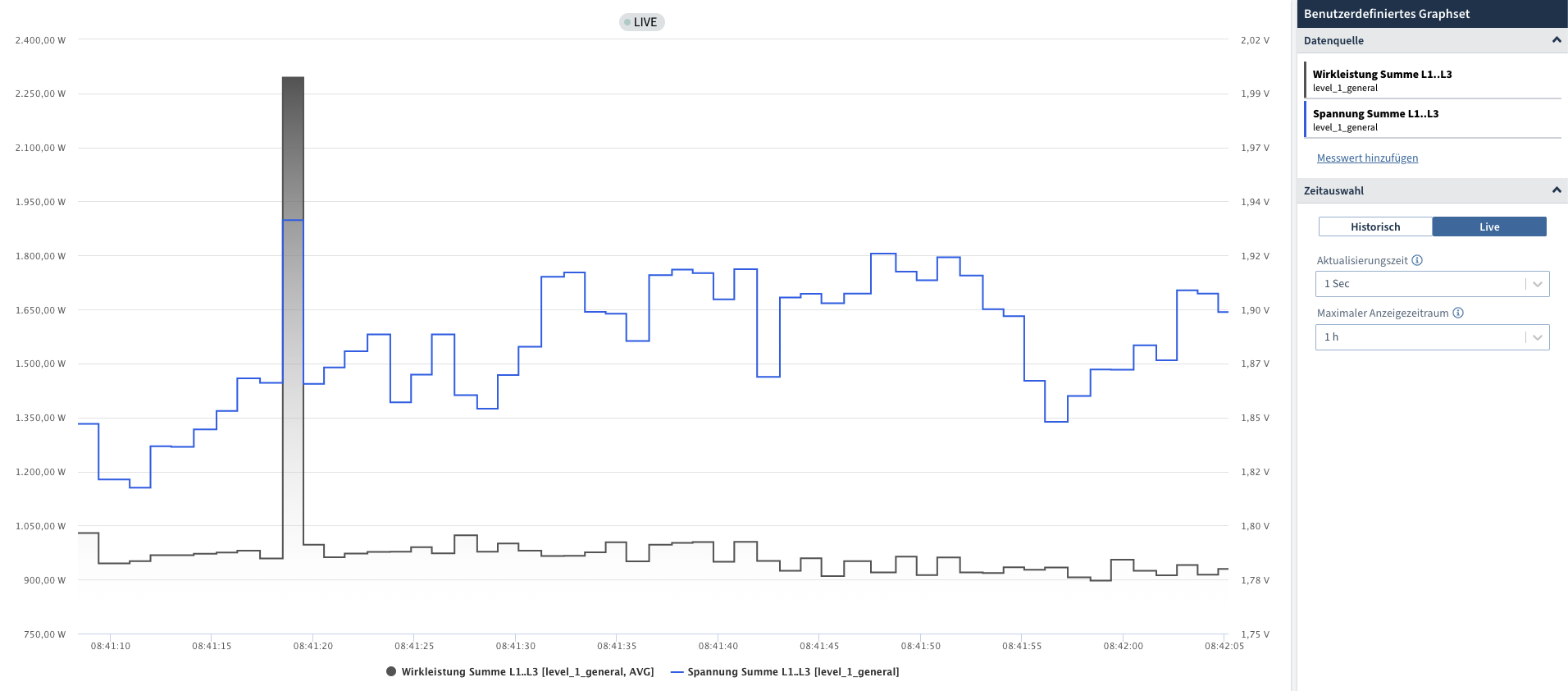

Measured value analysis in WEB - live values

• From now on, in addition to the historical values, live values can also be called up directly in the measured value analysis.

• Polling time and display period can be set directly on the graph. This allows precise control of how often a measured value is retrieved and how long the measured values are displayed. The user can now quickly and easily look at the current status of the measured values and get a quick overview.

Live values

Standard, Expert

One installation file for the GridVis desktop and the service

• The installation of the GridVis desktop and the GridVis service (which runs in the background of the GridVis software) can now be performed with only one installation file.

• The GridVis service can be installed multiple times on a server (PC), e.g. to share the load in larger projects. Independent services can thus be assigned to the projects.

Installation

Essential, Standard, Expert

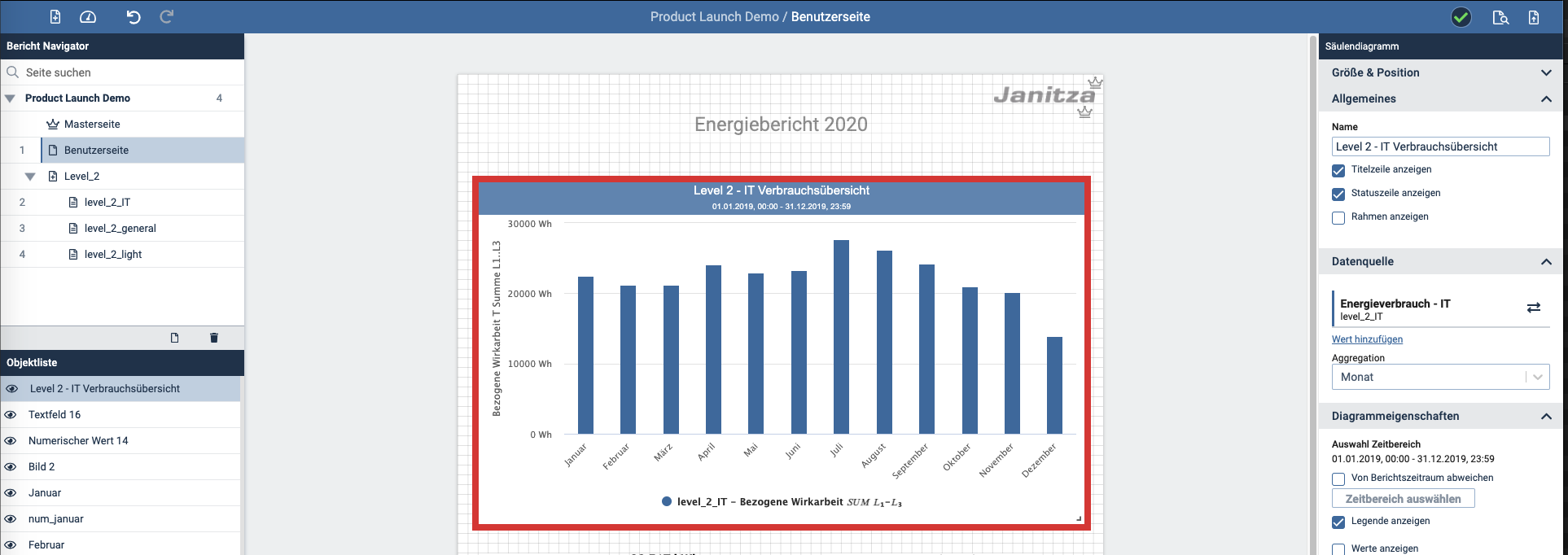

Editor for reports

Create reports according to your own specifications.

• The user can create reports with their own layout, content and design.

• Graphical elements (objects) with measured values, pictures and drawings can be placed freely: Line chart, bar chart, pie chart, numerical values, text fields, pictures.

• Layout pages offer the possibility to create templates. Templates considerably reduce the amount of work involved in creating reports. Layout pages are created once and can be filled with measurement data from different measuring devices.

• Clear and intuitive functions such as page navigation, object list (layers) and object settings

• Clear display and selection of possible objects (object library)

• Many more useful functions will follow in the next releases.

Reports

Expert

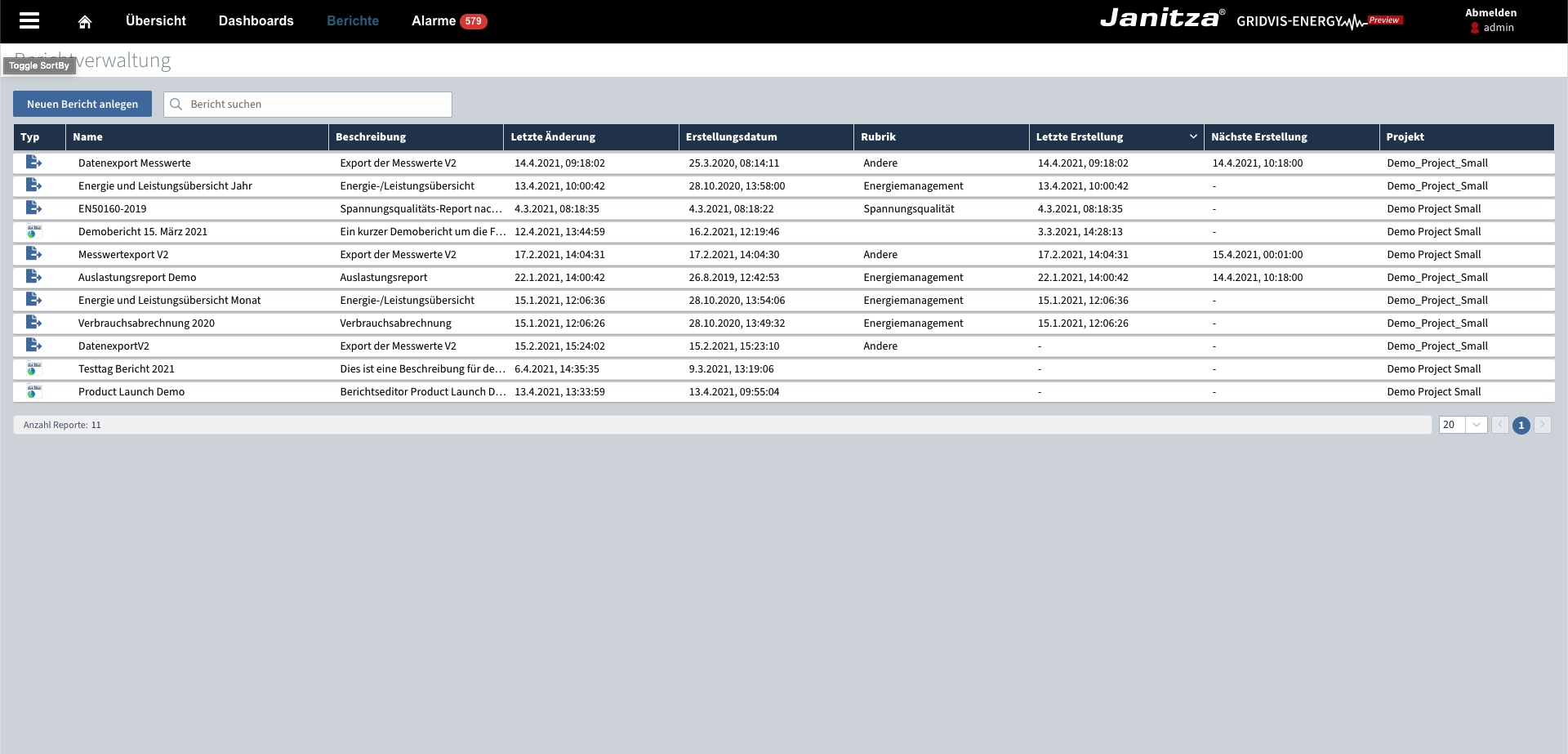

Manage data exports and reports on the web

Direct access to created reports & data exports (e.g. pdf) on the WEB!

• Create, edit or remove reports.

• Open created reports & data exports (e.g. pdf) directly in the browser.

Reports

Standard, Expert, Service, Ultimate

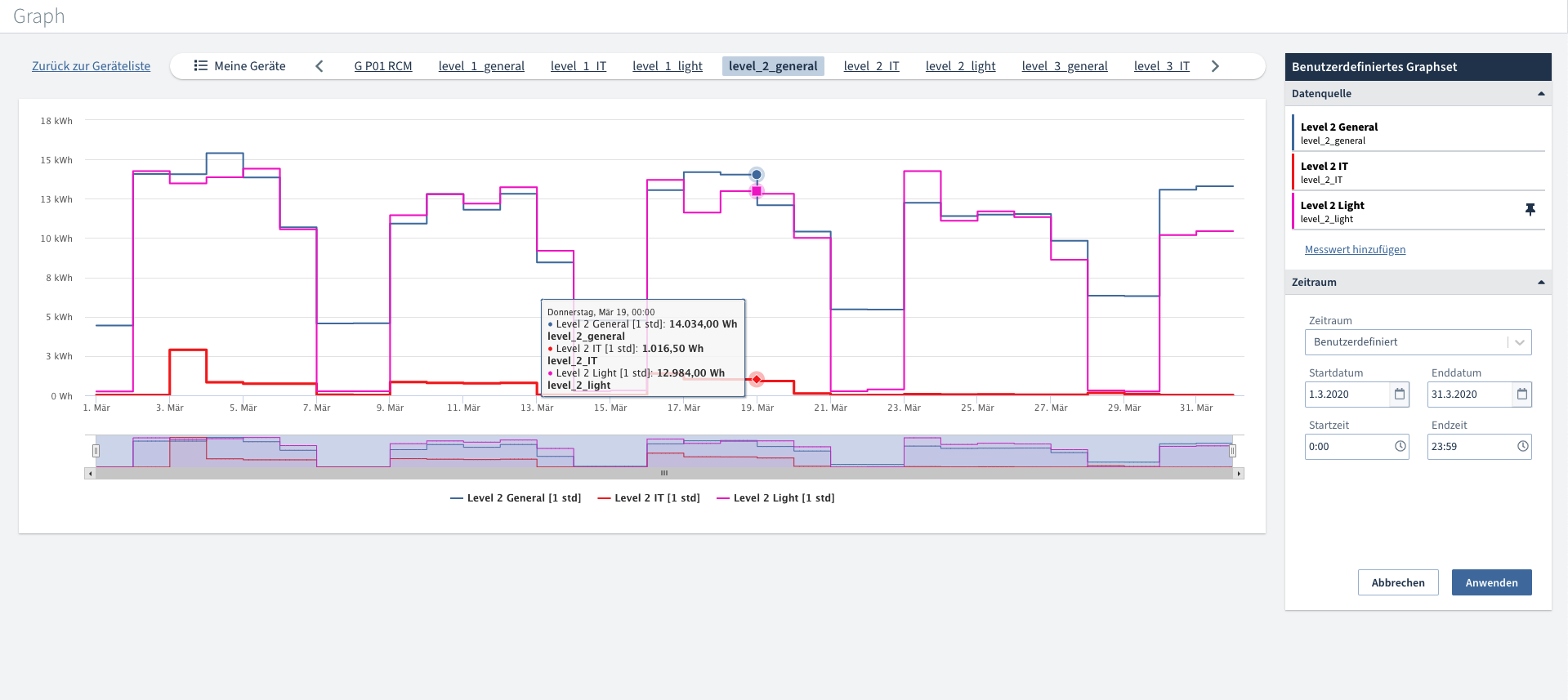

Extensions in the new graph function in the "WEB"

Useful graph function for quick measured value analysis

• The new graph function in the WEB now offers the possibility to display measured values from several devices in one graph. In addition, measured values can be pinned in the sidebar. The pin function, in conjunction with the device selection (top of the picture), allows the user to quickly compare measured values from several measurement points.

• Settings are saved user-related and are available for later access.

• New setting options for measured values: scaling, decimal place, drawing method, value type (average, MIN and MAX values)

• Aggregated display of measured values. With this new function, daily, weekly or monthly values can be generated from the measurement data and displayed in the graph.

Graphs

Standard & Expert

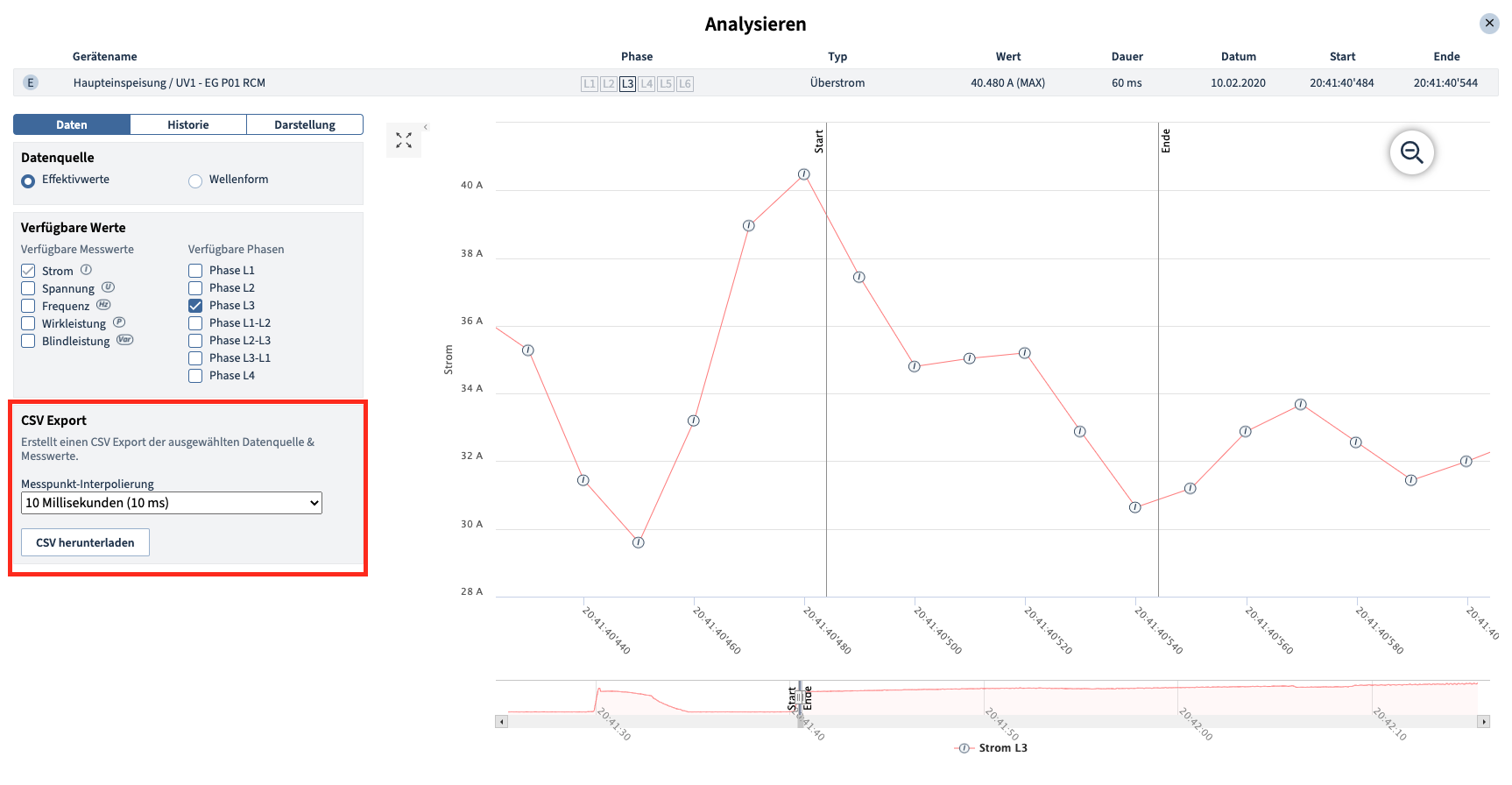

Event Browser - CVS export

Export high-resolution measurement data directly into CSV format!

• Events & transients can be exported directly from the graph in CSV format.

Data export

Standard, Expert,
Service, Ultimate

Security Update: new logback version (CVE-2021-42550)

System

GridVis Desktop / GridVis Web

8.0.102

Bugfixes list overview: sporadic loading error

Device overview

GridVis Web

8.0.102

Bugfix installer: service is only installed during update if it was already present before

Installer

GridVis Desktop / GridVis Web

8.0.102

Bugfix data export MSCONS: summertime is taken into account

Data export/reports

GridVis Desktop

8.0.102

Function modification device overview in WEB & measured value analysis: The UMG 801 is temporarily no longer supported

Device overview

GridVis Web

8.0.101

Bugfixes UMG801: Stabilization of the upgrade process.

Devices

GridVis Desktop

8.0.101

Bugfix Utilisation report: the utilization report can be configured with the UMG 801

Data export/reports

GridVis Desktop

8.0.101

Bug fix transmit a configuration of a UMG 96-PA-MID+ with module via UMG 512 Master

Devices

GridVis Desktop

8.0.101

Bug fix UMG 96-PA-MID+ with RCM-EL module are not possible to record RCM values.

Devices

GridVis Desktop

8.0.101

Bugfixes data export measured values V2: Energy values without backstop are output correctly

Data export/reports

GridVis Desktop

8.0.101

Bugfixes data export measured values V2: The last value is now available in the export

Data export/reports

GridVis Desktop

8.0.101

Bugfix data import: date format seconds

Data import

GridVis Desktop / GridVis Web

8.0.101

Function upgrade WEB overview: Energy data can optionally be displayed with relation bars

Device overview

GridVis Web

8.0.101

Function upgrade WEB overview: refresh time for measured and energy values can be set

Device overview

GridVis Web

8.0.101

Bugfix measured value selection: user defined with definition energy value are displayed

Measurement value selection

GridVis Web

8.0.101

Function modification MSCONS Export: Version upgraded to 2.3c

Data export/reports

GridVis Desktop

8.0.101

Function upgrade report editor: The user is guided through the report generation by a wizard

Report editor

GridVis Web

8.0.101

Function extension data export: In the utilization report the groups & device order can be freely determined

Data export/reports

GridVis Desktop

8.0.101

Function upgrade grid connection 3P1W UMG 96-PA series & PQ-L series

Devices

GridVis Desktop / GridVis Web

8.0.101

Bugfix data export: An error in the time selection was fixed

Data export/reports

GridVis Desktop

8.0.101

Bug fix UMG 96-PA und PQ-L series measurement validation in the comperator limit

Devices

GridVis Desktop

8.0.101

Function upgrade report editor: Weekends can be highlighted in the bar chart

Report editor

GridVis Web

8.0.101

Function upgrade Measuring values export v2: Scaling can be selected

Data export/reports

GridVis Desktop

8.0.101

Function extension export of measured values v2: exported measured values can be aggregated to 15 minutes

Data export/reports

GridVis Desktop

8.0.101

Function optimization database: more robust database storage during device readout produced

Databases

GridVis Desktop

8.0.100

Function modification ID Server: offline licensed projects can be removed from the license again

ID server

GridVis Desktop / GridVis Web

8.0.100

Bugfixes UMG801: Stabilization of the upgrade process.

Devices

GridVis Desktop

8.0.100

Function upgrade ID Server: Share license Email notification

ID server

GridVis Desktop / GridVis Web

8.0.100

Fnction upgrade WEB overview: historical measurement and energy data can be filtered to limit values

Device overview

GridVis Web

8.0.100

Function upgrade API: Extension of the energy value API by the output of the recording quality

Report editor

GridVis Web

8.0.100

Function upgrade WEB overview: historical measurement values can be added as column

Device overview

GridVis Web

8.0.100

Function upgrade WEB overview: refresh time for measured and energy values can be set

Device overview

GridVis Web

8.0.100

Function upgrade WEB overview: Total energy overview in the sidebar

Device overview

GridVis Web

8.0.100

Function upgrade report editor: Show CO2 emission in report

Report editor

GridVis Web

8.0.100

Bugfix UMG 96-PQ-L: MIN/MAX values are displayed in the recording configuration

Device overview

GridVis Web

8.0.100

Function upgrade report editor: The color selection was extended by the transparency

Report editor

GridVis Web

8.0.100

Function upgrade report editor: Text alignment in numeric value object can be changed

Report editor

GridVis Web

8.0.100

Function upgrade report editor: Weekends can be highlighted in the line chart

Report editor

GridVis Web

8.0.100

Bugfix report manager: The link to the latest report could not be copied

Report management

GridVis Web

8.0.100

Fix UMG801: Stabilization of the upgrade process.

Devices

GridVis Desktop

8.0.82

Bugfix commissioning report: scaling error in commissioning report

Data export/reports

GridVis Desktop

8.0.82

Bugfix DI: Measurement precision

Data import

GridVis Desktop / GridVis Web

8.0.81

Bugfix installer: uninstalling stops the service automatically

Installer

GridVis Desktop / GridVis Web

8.0.81

Bugfix Active Directory: Fixed a problem that occurred after restarting GridVis.

User management

GridVis Desktop

8.0.81

Bugfix data import: 1 & 5 minute values with end time

Data import

GridVis Desktop

8.0.81

Function upgrade WEB overview: Energy data can be added as a column

Device overview

GridVis Web

8.0.81

Function upgrade Dashboards: Dashboard groups can be set by autocompletion

Dashboards

GridVis Web

8.0.81

Function upgrade WEB overview : Energy columns can be sorted

Device overview

GridVis Web

8.0.81

Function upgrade report editor: Extended measured value settings in the line chart

Report editor

GridVis Web

8.0.81

Function upgrade WEB overview: Decimal place & scaling can be set for energy and -measured values

Device overview

GridVis Web

8.0.81

Function modification data transmission: TLS 1.0 is no longer supported

General

GridVis Desktop / GridVis Web

8.0.81

Function upgrade WEB overview: historical measurement values can be added as column

Device overview

GridVis Web

8.0.81

Bugfix data export: Data exports can be hidden on the web

Report management

GridVis Web

8.0.81

Function upgrade device configuration web | default settings for UMG 96-PQ-L, UMG 96-PA, UMG801 and UMG 806

Configuration

GridVis Web

8.0.81

Function upgrade | UMG 96-PQ-L waveform as online value

Graphs

GridVis Desktop

8.0.81

Function extension report editor: During the device exchange, the recording density can be adjusted automatically

Report editor

GridVis Web

8.0.81

Function upgrade report editor: Objects can be aligned with each other

Report editor

GridVis Web

8.0.81

Bugfix UMG801: Improved performance while reading historical data.

Devices

GridVis Desktop / GridVis Web

8.0.80

Function modification ID Server: Email address can be modified

ID server

GridVis Desktop / GridVis Web

8.0.80

Function upgrade WEB overview: Sidebar was extended with tab function

Device overview

GridVis Web

8.0.80

Function upgrade | UMG 96-PQ-L support Partition A & B

Devices

GridVis Desktop / GridVis Web

8.0.80

Function upgrade | UMG 96-PQ-L events

Devices

GridVis Desktop / GridVis Web

8.0.80

Function upgrade | UMG 96-PA-MID+ additional values calibration interval

Devices

GridVis Desktop

8.0.80

Function upgrade report editor: multiple selection & configuration of objects

Report editor

GridVis Web

8.0.80

Function upgrade report editor: New object - regression analysis

Report editor

GridVis Web

8.0.80

Bugfix DI: Measurement precision

Data import

GridVis Desktop / GridVis Web

8.0.70

Bugfix project name: special letters in the project name can lead to errors in the application

Project

GridVis Desktop / GridVis Web

8.0.70

Bugfix installer: uninstalling stops the service automatically

Installer

GridVis Desktop / GridVis Web

8.0.69

Bugfixes Windows Authentication MSSQL driver

Databases

GridVis Desktop

8.0.67

Bugfixes WEB device overview: Turkish language is not displayed

Device overview

GridVis Desktop

8.0.63

Bugfix UMG 801: reading of PQ data

Devices

GridVis Desktop / GridVis Web

8.0.62

Bugfixes KPI: PDF export works again

KPI

GridVis Web

8.0.62

Function upgrade device configuration in web; note while leaving page to save the settings

Configuration

GridVis Web

8.0.62

Function upgrade WEB device overview: Sidebar foldable with tab function

Device overview

GridVis Web

8.0.62

Function upgrade report editor: E-mail notification when a report is generated

Report editor

GridVis Web

8.0.62

Function modification error report: automatic dispatch is not longer supported

Discontinued

GridVis Desktop

8.0.62

Function upgrade web device configuration in GridVis desktop for PA und PQ-L series

Devices

GridVis Desktop

8.0.62

Bugfix: "Device not found" can now be deleted in user-defined trees

Devices

GridVis Desktop

8.0.62

Function upgrade utilisation report: The neutral conductor can be monitored with a new limit value

Data export/reports

GridVis Desktop

8.0.61

Function upgrade data export: Extended measured value settings in the bar chart

Report editor

GridVis Web

8.0.61

Function upgrade report editor: extended measured value settings in the pie chart

Report editor

GridVis Web

8.0.61

Bugfix saving generic modbus profiles

Generic modbus

GridVis Desktop

8.0.61

Function upgrade firmware update RCM201-Rogo

Devices

GridVis Desktop

8.0.60

Bugfix Utilisation report: Error in the calculation of the totals

Data export/reports

GridVis Desktop

8.0.60

Function upgrade reportmanager: Optimisation of the report overview window

Report management

GridVis Web

8.0.60

Function upgrade Janitza ID: Licenses can be shared within a company

License

GridVis Desktop / GridVis Web

8.0.60

Function upgrade report editor: Reports can be imported and exported across projects

Report editor

GridVis Web

8.0.60

Bugfix parallel firmware update from devices

Devices

GridVis Desktop

8.0.60

Function upgrade report editor: New object - ABC analysis

Report editor

GridVis Web

8.0.60

Function upgrade report editor: The numerical value shows the existing data portion

Report editor

GridVis Web

8.0.60

Function upgrade drag pointer in web device configuration

Devices

GridVis Web

8.0.60

Function upgrade report editor: Reports can be imported and exported between projects

Report editor

GridVis Web

8.0.60

Function upgrade UMG801: Waveform recording configuration

Devices

GridVis Desktop

8.0.60

Bug fixes device swap

Devices

GridVis Desktop

8.0.45

Bug fixes UMG 801: Duplicated modules and measurement groups corrected

Devices

GridVis Desktop

8.0.45

Bug fixes UMG 801: Recording gaps corrected

Devices

GridVis Desktop

8.0.45

Function upgrade installer: One Installer for the GridVis desktop and the GridVis service

Installer

GridVis Desktop / GridVis Web

8.0.45

Function upgrade WEB graph: Live values

Graphs

GridVis Web

8.0.45

Function upgrade: Windows certificates are supported

System

GridVis Desktop / GridVis Web

8.0.45

Bug fixes UMG 96-PA-MID+: Opening of device configuration corrected

Devices

GridVis Desktop

8.0.45

Function upgrade device configuration on the web: Save hint when leaving the page

Devices

GridVis Web

8.0.40

Function upgrade WEB graph: Print function

Graphs

GridVis Web

8.0.40

Function upgrade WEB graph: Display of absolute measured values

Graphs

GridVis Web

8.0.40

Function upgrade UMG 96-PA: Set values

Devices

GridVis Desktop

8.0.40

Function upgrade dashboards: Set dashboard groups via autocompletion

Dashboards

GridVis Web

8.0.40

Function upgrade CSV data import: Copying of data imports in GridVis

Data export/reports

GridVis Desktop

8.0.40

Function upgrade REST API: Query of device firmware

Devices

GridVis Desktop

8.0.40

Functional adjustment License Server: Email notification for new editions

License server

GridVis Desktop / GridVis Web

8.0.40

Function upgrade installer: New GridVis Multi-Installer

Installer

GridVis Desktop / GridVis Web

8.0.40

Function upgrade WEB graph: Adjusting line thickness and fill color

Graphs

GridVis Web

8.0.40

Function upgrade WEB graph: Display of absolute measured values

Graphs

GridVis Web

8.0.40

Function upgrade WEB graph: PDF output

Graphs

GridVis Web

8.0.40

Function upgrade report editor: New object - energy values and measured values table

Report editor

GridVis Web

8.0.40

Function upgrade report editor: Object extension - dynamic texts

Report editor

GridVis Web

8.0.40

Function upgrade WEB graph: PNG, JPEG and SVG export

Graphs

GridVis Web

8.0.40

Function upgrade WEB graph: PDF output

Graphs

GridVis Web

8.0.40

Function upgrade WEB graph: Improved time period selection and display

Graphs

GridVis Web

8.0.40

Function upgrade WEB graph: CSV export

Graphs

GridVis Web

8.0.40

Bug fixes workload report: reports completion under certain configuration corrected

Data export/reports

GridVis Desktop

8.0.22

Bug fixes Janitza-ID: Sporadic problems with login corrected

ID Server

GridVis Desktop / GridVis Web

8.0.21

Bug fixes and improvement: Scaling of generic Modbus profile

Generic Modbus

GridVis Desktop

8.0.21

Bug fixes data exports: edit and delete corrected

Data export/reports

GridVis Desktop

8.0.21

Bug fixes: Editing of the time scheduling of a database action with active Active Directory corrected

Databases

GridVis Desktop

8.0.21

Bug fixes RCM data export: Double device display with certain configurations corrected

Data export/reports

GridVis Desktop

8.0.21

Function upgrade report editor: run reports based on schedules

Report editor

GridVis Web

8.0.21

Function upgrade report editor: New object - frames & lines

Report editor

GridVis Web

8.0.21

Function upgrade report editor: Theming - customization of report editor graphical elements (CI)

Report editor

GridVis Web

8.0.21

Function upgrade report editor: Link to the latest report and data export available

Data export/reports

GridVis Desktop

8.0.21

Function upgrade data export: Power quality report according to EN50160:2020

Data export/reports

GridVis Desktop

8.0.21

Function adjustment device configuration: Pre- and post-trigger times in event configuration adjusted (seconds display)

Devices

GridVis Desktop

8.0.21

Bug fixes RCM report: RCM variables generic Modbus device & RCM202/201 corrected

Data export/reports

GridVis Desktop

8.0.20

UI modification: Renaming "Custom Triggers" to "Event Triggers

Configuration

GridVis Desktop

8.0.20

Function upgrade UMG 801: User defined recording configuration

Devices

GridVis Desktop

8.0.20

Function upgrade UMG 96-PA / PQ-L: Recording configuration in web UI

Devices

GridVis Web

8.0.20

Function upgrade report editor: Keyboard shortcuts extended

Data export /reports

GridVis Web

8.0.20

Function upgrade UMG 512: Display of LL transients in graph corrected

Devices

GridVis Desktop

8.0.20

Bug fixes UMG 96 PA-MID+: Energy calculation MID+ corrected

Devices

GridVis Desktop

8.0.5

Bug fixes Database actions: Scheduling DB actions corrected

Database

GridVis Desktop / GridVis Web

8.0.4

Bug fixes UMG 96-PA-MID+: Status with MID+ measured values corrected

Devices

GridVis Desktop

8.0.4

Bug fixes Licensing: Proxy server with login corrected

License

GridVis Desktop / GridVis Web

8.0.4

Bug fixes Licensing : Inactive readout corrected

License

GridVis Desktop / GridVis Web

8.0.4

Bug fixes topology: May be sporadically disabled

Topology

GridVis Desktop

8.0.4

Bug fixes timestamp: ZSG report

Data export/reports

GridVis Desktop

8.0.4

Function upgrade WEB graph: Energy values and measured values can be aggregated to fixed time periods

Graphs

GridVis Web

8.0.4

Function upgrade UMG 512: New checkbox for event triggers in the configuration of the UMG 512 "Recording of all events in COMTRADE format".

Devices

GridVis Desktop

8.0.4

Function upgrade WEB graph : Optimized tooltip & legend

Graphs

GridVis Web

8.0.4

Function upgrade WEB graph: "Automatic" mode for recording density

Graphs

GridVis Web

8.0.4

Function upgrade device overview in WEB: Firmware and MAC address can be added as a column

Device overview

GridVis Web

8.0.4

Function upgrade WEB graph: Setting of the scaling

Graphs

GridVis Web

8.0.4

Bug fixes license portal: Janitza ID login corrected

License

GridVis Desktop / GridVis Web

8.0.3

Bug fixes disabled topologies

Topology

GridVis Desktop

8.0.3

Bug fixes licensing: Corrected proxy server with login

License

GridVis Desktop / GridVis Web

8.0.3

Bug fixes Timestamp: CLP Report

Data export /reports

GridVis Desktop

8.0.3

Bug fixes licensing: Inactive reading corrected

License

GridVis Desktop / GridVis Web

8.0.3

Bug fixes UMG 96-PA-MID+: Status corrected for MID+ measured values

Devices

GridVis Desktop

8.0.3

Function upgrade WEB graph: Measured value aggregation for fixed periods of time

Graph

GridVis Web

8.0.3

Function upgrade WEB graph: Optimized tooltip & cover

Graph

GridVis Web

8.0.3

Function upgrade WEB graph: Recording density

Graph

GridVis Web

8.0.3

Function upgrade WEB device overview: Extension by the firmware and MAC address columns

Devices

GridVis Web

8.0.3

Function upgrade WEB graph: New "scale" setting for WEB graph function

Graph

GridVis Web

8.0.3

Bug fixes picture library

Dashboard / image library

GridVis Web

8.0.2

Bug fixes login WEB UI: Corrections when restarting the service

GridVis Service

GridVis Web

8.0.2

Bug fixes utilization report

Data export /reports

GridVis Desktop

8.0.2

Bug fixes last recording in device list

Devices

GridVis Desktop

8.0.2

Function upgrade WEB graph: Drawing method settings

Graph

GridVis Web

8.0.2

Function upgrade UMG 96-PA-MID+ ab FW >3.0: Additional measurement values

Devices

GridVis Desktop

8.0.2

Function upgrade WEB graph: Value type selection MIN, MAX, SVG

Graph

GridVis Web

8.0.2

Function change UMG 96-PA / UMG 96-PQ-L: No longer support for the "Automatic baud rate" setting in Modbus gateway operation

Devices

GridVis Desktop

8.0.2

Bug fixes generic modbus profiles

Generic Modbus

GridVis Desktop

8.0.1

Bug fixes Licensing: Google Login

License

GridVis Desktop / GridVis Web

8.0.1

Function upgrade WEB graph: pin function for measurements

Graph

GridVis Web

8.0.1

Function upgrade WEB graph: device multi selection

Graph

GridVis Web

8.0.1

Function upgrade WEB graph: Settings after the decimal point

Graph

GridVis Web

8.0.1

Bug fixes UMG 801: corrected device names for alarms and emails

Devices

GridVis Desktop

8.0.1

Bug fixes login WEB UI: Fixed sporadic problems when restarting the service

GridVis Service

GridVis Web

8.0.0

Bug fixes UMG 801: Events and transients download corrected

Events and transients

GridVis Desktop

8.0.0

Bug fixes CSV data import : Corrected energy calculation for minute values

Data import

GridVis Desktop

8.0.0

Bug fixes CSV data import: High CPU workload with short time intervals

Data import

GridVis Desktop

8.0.0

Bug fixes UMG801: When the basic device is deactivated, duplicated modules corrected

Devices

GridVis Desktop

8.0.0

Bug fixes License: Google login

License

GridVis Desktop / GridVis Web

8.0.0

Function modification Online Recorder: Available in Standard Edition

Online recorder

GridVis Web

8.0.0

Function modification license process: New license process is default

License

GridVis Desktop / GridVis Web

8.0.0

Function upgrade WEB graph: Aggregate energy and measured values over fixed periods of time

Graph

GridVis Web

8.0.0

Bug fixes UMG 96PA(-MID): Corrected opening of the device's web configuration without a module

Devices

GridVis Web

8.0.0

Function upgrade editor for reports: create userspecific reports, for Expert Edition available

Data export /reports

GridVis Desktop

8.0.0

Bug fixes graph CSV export: Corrected export function

Data export /reports

GridVis Desktop

8.0.0

Function upgrade UMG 96-PA series: Time zone settings

Devices

GridVis Desktop

8.0.0

Bug fixes devices: Display of the "Energy overview" legend corrected

Devices

GridVis Desktop

8.0.0

Function upgrade WEB device configuration: Device backup will be supported

Configuration

GridVis Web

8.0.0

Bug fixes KPI: Corrected print representation

KPI

GridVis Web

8.0.0

Function upgrade WEB graph: pin function for measurements will be supported

Graph

GridVis Web

8.0.0

Function upgrade Dashboard: New resolution will be supported (8K, iPad)

Dashboard

GridVis Web

8.0.0

Function upgrade WEB graph: Device multi selection will be supported

Graph

GridVis Web

8.0.0

Bug fixes UMG 801: Synchronization of disabled Devices removed

Devices

GridVis Desktop

8.0.0

Function upgrade data export: measurement export V2 - Selection start and end time

Data export /reports

GridVis Desktop

8.0.0

Function upgrade UMG 801: Settings "digital input powervalue S0"

Devices

GridVis Desktop

8.0.0

Function upgrade UMG 96-PA-RCM-EL: Label for RCM status modul

Devices

GridVis Desktop

8.0.0

Function upgrade UMG 96-PA series: aron curcuit

Devices

GridVis Desktop

8.0.0

Bug fixes data export "ZSG-Report": Corrected detailed view of self-consumption

Data export /reports

GridVis Desktop

8.0.0

Bug fixes data export "ZSG-Report": Corrected deliberate subordination

Data export /reports

GridVis Desktop

8.0.0

Bug fixes RCM 202-AB: Corrected display of firmware

Devices

GridVis Desktop

8.0.0

Function modification UMG 512: Event settings

Events and transients

GridVis Desktop

8.0.0

Function upgrade: New "scale" setting for WEB graph function

Graph

GridVis Web

8.0.0

Function upgrade: new "decimal place" setting in WEB graph function

Graph

GridVis Web

8.0.0
