GridVis service (system service)
The GridVis service is a service that is stored in the system services of your operating system and runs in the system background without a user interface.

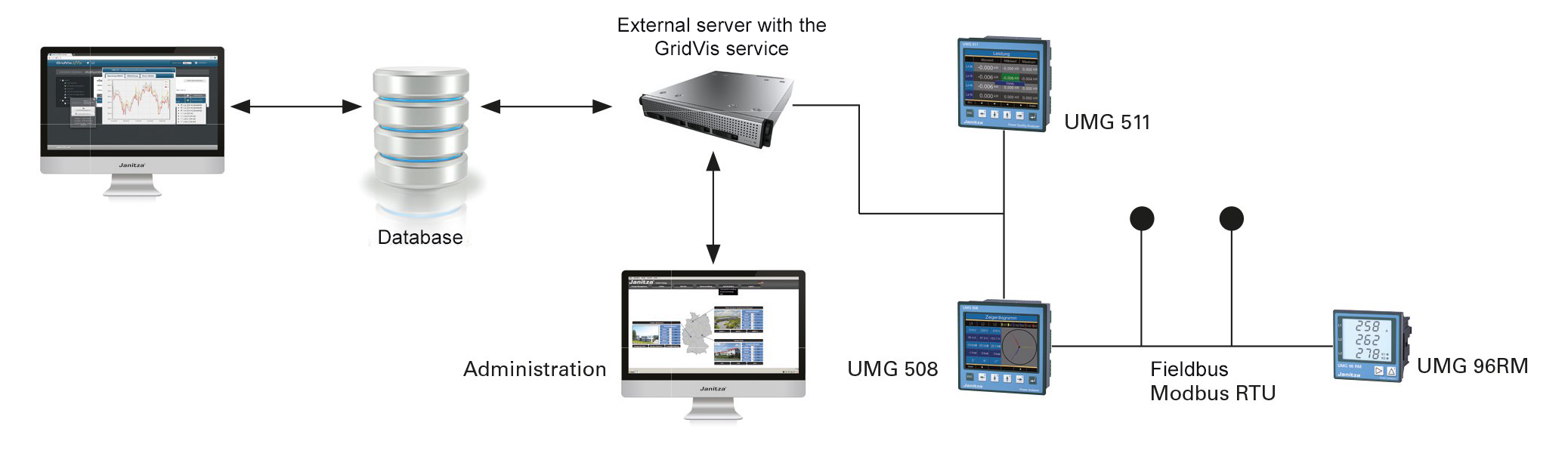

The GridVis service (system service) runs analogously to your GridVis desktop installation via a system service on a remote server and communicates with the measurement devices.
The installation of the GridVis service works from the GridVis Standard edition.
The system service permanently reads data from the measurement devices in the background without the GridVis desktop program interface being open.
By installing the GridVis service (service installation), parallel use of your project by several clients is possible.
Projects and measurement devices are configured via the GridVis desktop program interface.
Then the device rights are transferred to the GridVis service.
You configure the GridVis service via the web browser.
Graphical and statistical evaluations continue to run via the GridVis desktop.
Note
In the GridVis service (system service), you configure your settings for an Email server for the GridVis Standard and Expert editions. This is necessary, for example, for alarm notification by e-mail (see: in alarm management under New alarm plan and Send an Email ).

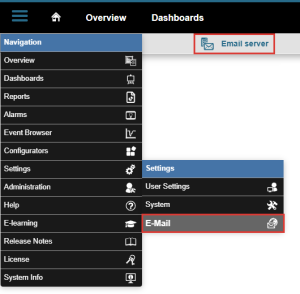

You can reach the Email server window in your GridVis edition Standard or Expert (platform GridVis Web) under Navigation > Settings > E-Mail (tab Email server).
To configure the Email server in the GridVis service (service), ask your network administrator for the access data if necessary.
