Secure TCP/IP connection

The following measuring devices have a secure TCP/IP connection:

• UMG 508

• UMG 509-PRO

• UMG 511

• UMG 512-PRO

• UMG 604-PRO

• UMG 605-PRO

Communication with the measuring devices of the UMG series is usually via Ethernet. The measuring devices provide different protocols with the respective connection ports for this purpose. Software applications such as the GridVis communicate with the measuring devices via the FTP, Modbus or HTTP protocol.

Network security in the company network plays an increasingly important role here.

This guide is intended to support you in securely integrating the measuring devices into the network, thus effectively protecting the measuring devices from unauthorized access.

This guide refers to firmware > 4.057, as the following HTML changes have been made:

• Improvement of the challenge calculation

• After three incorret logins, the IP (of the client) is blocked for 15 minutes

• GridVis settings revised

• HTML password: can be set, 8 digits

• HTML configuration completely lockable

If the measuring device is used in the GridVis, several connection protocols are available. A standard protocol is the FTP protocol – i.e. the GridVis reads files from the measuring device via FTP port 21 with the respective data ports 1024 to 1027. In the TCP/IP setting, the connection is made unsecured via FTP. A secured connection can be established using the TCP secured connection type.

Change password

A user and password are required for the secure connection. By default, the user is admin and the password is Janitza. For a secure connection, the password for administrator access (admin) can be changed in the configuration menu.

1. Step

• Open the Configure connection dialog
  Example 1: To do this, use the mouse button to highlight the corresponding device in the projects window and select Configure connection in the context menu of the right mouse button
  Example 2: Double-click on the corresponding device to open the overview window and select the Configure connection button

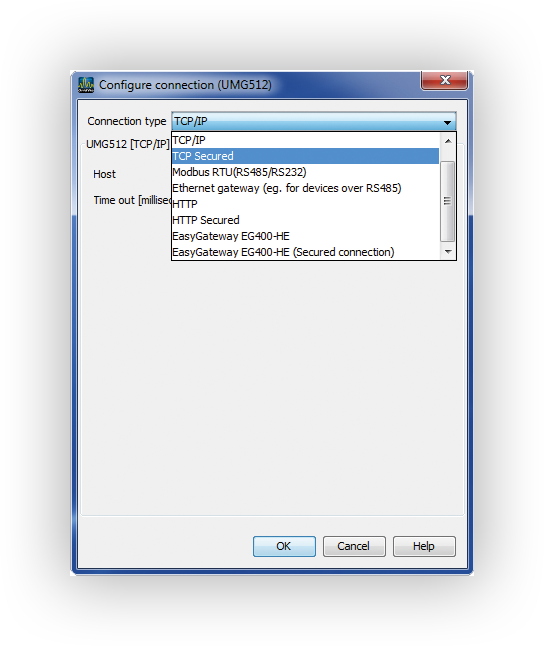

• Select the connection type TCP secured

• Set the host address of the device

• Fill in the username and password.
  Factory settings:
  Username: admin
  Password: Janitza

• Set the Encrypted menu item.
  An AES26-bit encryption of the data is then activated.

2. Step

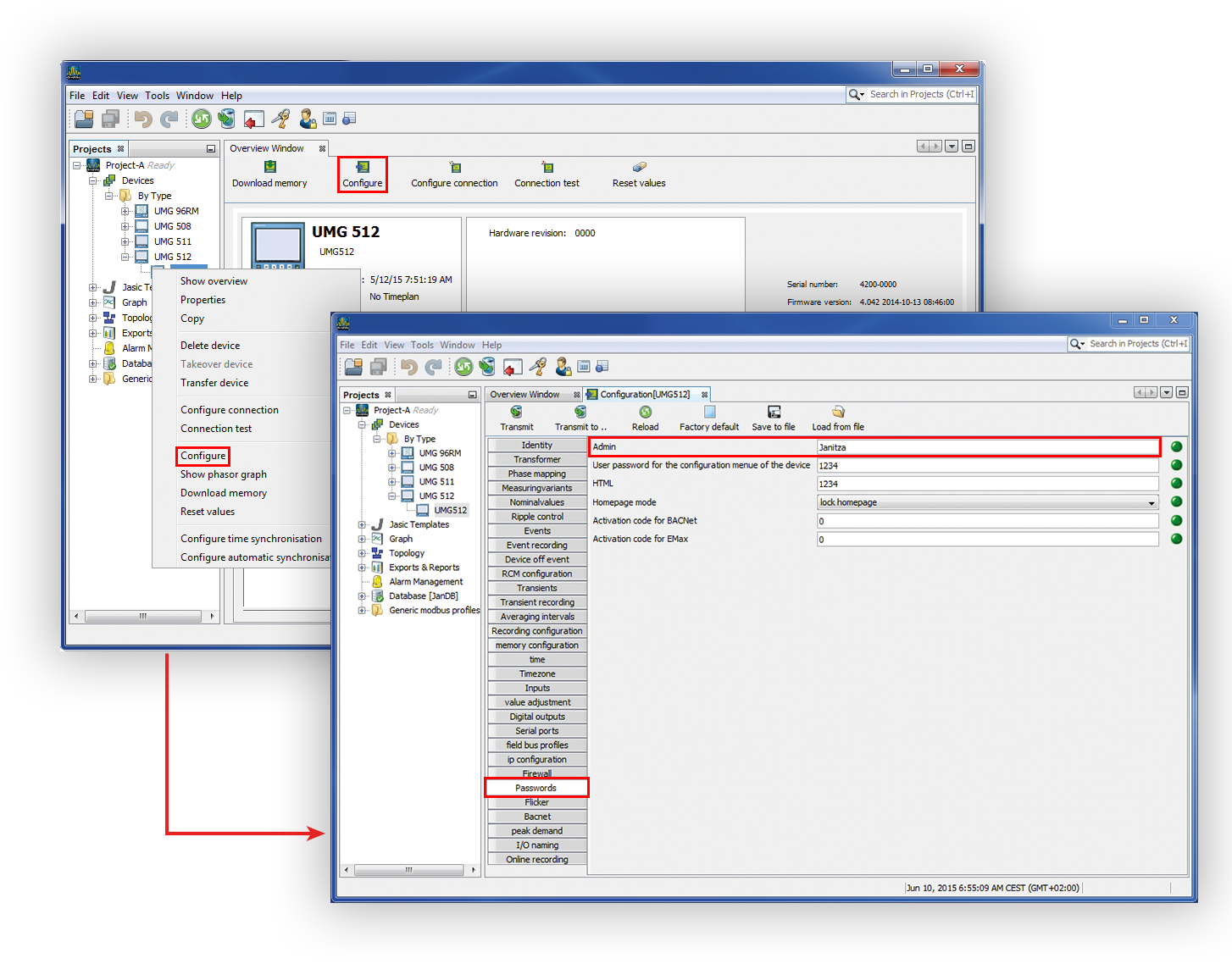

• Open the configuration window
  Example 1: To do this, use the mouse button to highlight the corresponding device in the projects window and select Configure in the context menu of the right mouse button
  Example 2: Double-click on the corresponding device to open the overview window and select Configure button

• Select the Passwords button in the configuration window.
  Change the administrator password, if desired.

• Save the changes with the transfer of the data to the device (Transfer button)
