KBR multicomp
Generic Modbus profile of the non-proprietary device:
KBR multicomp 5D6-ESBSDS-1V1C6RO
Template name of the profile:
KBR multicomp
Function test
|
Function |
supported, tested with / Description |
|
Function codes |
fc3, fc4 |
|
Gateways |
UMG 605, Firmware 4.005 |
|
Parameter settings |
|
|
Connection with GridVis |
|

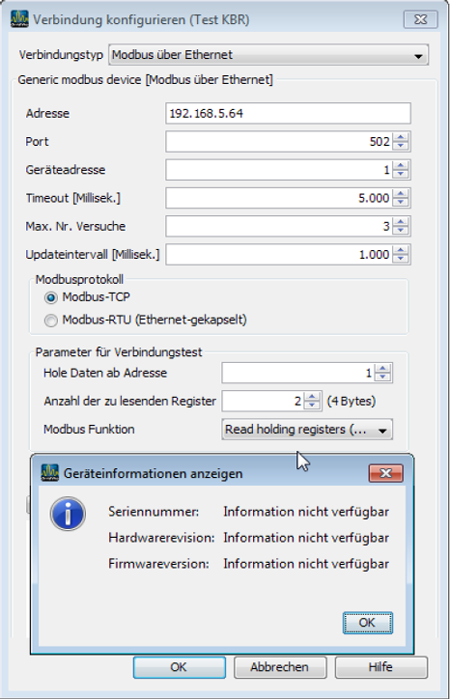

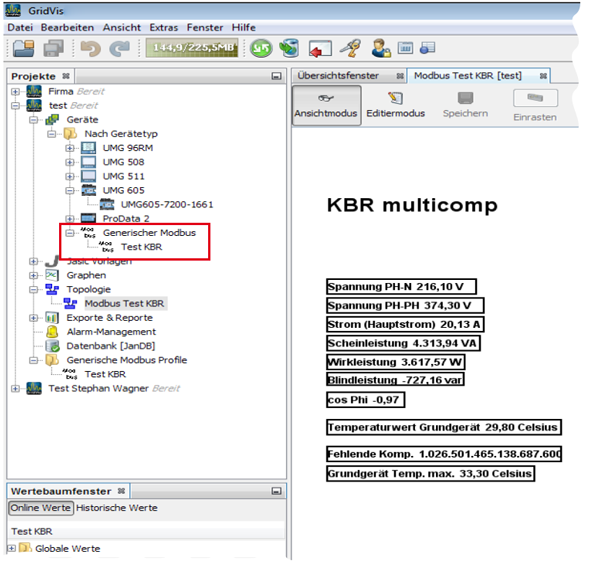

Example: GridVis - Connection
Modbus profile setup KBR multicomp
|
Pos. |
Modbus addresse (dec.) |
Value |
Format |
Scaling |
|
1 |
1 |
Voltage PH-N |
Float 32Bit |
1 |
|
2 |
3 |
Voltage PH-PH |
Float 32Bit |
1 |
|
3 |
5 |
Current (Main current) |
Float 32Bit |
1 |
|
4 |
9 |
Apparent power |
Float 32Bit |
1 |
|
5 |
11 |
Effective power |
Float 32Bit |
1 |
|
6 |
13 |
Reactive power |
Float 32Bit |
1 |
|
7 |
15 |
cos Phi |
Float 32Bit |
1 |
|
8 |
67 |
Temperature value of the basic device |
Float 32Bit |
1 |
|
9 |
155 |
Lack of corrective power |
Float 32Bit |
1 |
|
10 |
161 |
Temperature value of the basic device |
Float 32Bit |
1 |
