KBR multimess Basic
Generic Modbus profile of the non-proprietary device:
KBR multimess Basic
Template name of the profile:
multimess Basic
Function test
|
Function |
supported, tested with / Description |
|
Function codes |
fc2, fc4, fc6, fc10 |
|
Gateways |
UMG 604, Firmware 4.051 |
|
Parameter settings |
|
|
Connection with GridVis |
|
|
Modbus diagnosis |
|
|
Online recording |
|

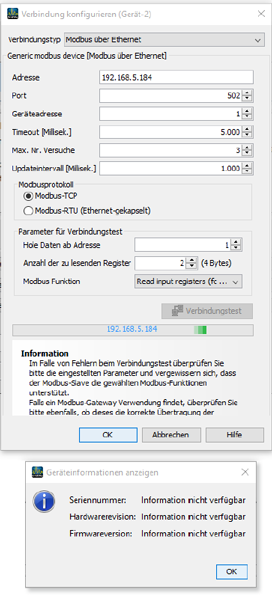

Example: GridVis - Connection

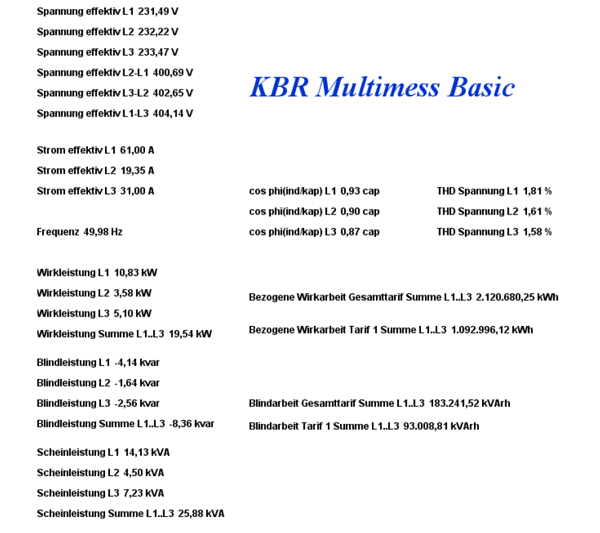

Modbus profile setup multimess Basic
|
Pos. |
Modbus address (dec.) |
Value |
Format |
Scaling |
|
1 |
1 |
Voltage L1 [V] |
FLOAT 32Bit |
1 |
|
2 |
3 |
Voltage L2 [V] |
FLOAT 32Bit |
1 |
|
3 |
5 |
Voltage L3 [V] |
FLOAT 32Bit |
1 |
|
4 |
7 |
Voltage L2-L1 [V] |
FLOAT 32Bit |
1 |
|
5 |
9 |
Voltage L3-L2 [V] |
FLOAT 32Bit |
1 |
|
6 |
11 |
Voltage L1-L3 [V] |
FLOAT 32Bit |
1 |
|
7 |
13 |
Current L1 [A] |
FLOAT 32Bit |
1 |
|
8 |
15 |
Current L2 [A] |
FLOAT 32Bit |
1 |
|
9 |
17 |
Current L3 [A] |
FLOAT 32Bit |
1 |
|
10 |
25 |
Apparent power L1 [VA] |
FLOAT 32Bit |
1 |
|
11 |
27 |
Apparent power L2 [VA] |
FLOAT 32Bit |
1 |
|
12 |
29 |
Apparent power L3 [VA] |
FLOAT 32Bit |
1 |
|
13 |
31 |
Effective power L1 [W] |
FLOAT 32Bit |
1 |
|
14 |
33 |
Effective power L2 [W] |
FLOAT 32Bit |
1 |
|
15 |
35 |
Effective power L3 [W] |
FLOAT 32Bit |
1 |
|
16 |
37 |
Reactive power L1 [var] |
FLOAT 32Bit |
1 |
|
17 |
39 |
Reactive power L2 [var] |
FLOAT 32Bit |
1 |
|
18 |
41 |
Reactive power L3 [var] |
FLOAT 32Bit |
1 |
|
19 |
43 |
cos phi (ind/kap) L1 |
FLOAT 32Bit |
1 |
|
20 |
45 |
cos phi (ind/kap) L2 |
FLOAT 32Bit |
1 |
|
21 |
47 |
cos phi (ind/kap) L3 |
FLOAT 32Bit |
1 |
|
22 |
175 |
Frequency [Hz] |
FLOAT 32Bit |
1 |
|
23 |
181 |
Total effective power L1..L3 [W] |
FLOAT 32Bit |
1 |
|
24 |
183 |
Total reactive power L1..L3 [var] |
FLOAT 32Bit |
1 |
|
25 |
185 |
Total apparent power L1..L3 [VA] |
FLOAT 32Bit |
1 |
|
26 |
709 |
Total drawn real power (HT) L1..L3 [Wh] |
FLOAT 32Bit |
1 |
|
27 |
711 |
Total drawn real power (Rate 1 = NT) L1..L3 [Wh] |
FLOAT 32Bit |
1 |
|
28 |
713 |
Total reactive energy (HT) L1..L3 [VArh] |
FLOAT 32Bit |
1 |
|
29 |
715 |
Total reactive energy (Rate 1 = NT) L1..L3 [VArh] |
FLOAT 32Bit |
1 |
|
30 |
55 |
THD Voltage L1 [%] |
FLOAT 32Bit |
1 |
|
31 |
57 |
THD Voltage L2 [%] |
FLOAT 32Bit |
1 |
|
32 |
59 |
THD Voltage L3 [%] |
FLOAT 32Bit |
1 |
