Siemens Sentron PAC3100
Generic Modbus profile of the non-proprietary device:
Siemens Sentron PAC3100
Template name of the profile:
SENTRON3100 Modbus profile
Function test
|
Function |
supported, tested with / Description |
|
Function codes |
fc2, fc3, fc4, fc6, fc10 |
|
Gateways |
UMG 604, Firmware 4.051 |
|
Parameter settings |
|
|
Connection with GridVis |
|
|
Modbus diagnosis |
|
|
Online recording |
|

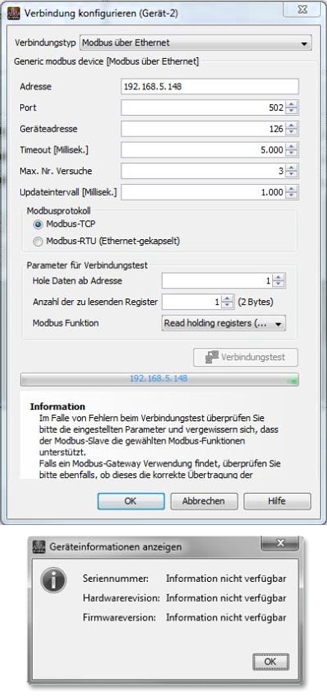

Example: GridVis software - Connection
Modbus profile setup SENTRON PAC3100
|
Pos. |
Modbus address (dec.) |
Value |
Format |
Scaling |
|
1 |
1 |
Voltage L1 |
FLOAT 32Bit |
1 |
|
2 |
3 |
Voltage L2 |
FLOAT 32Bit |
1 |
|
3 |
5 |
Voltage L3 |
FLOAT 32Bit |
1 |
|
4 |
7 |
Voltage L1-L2 |
FLOAT 32Bit |
1 |
|
5 |
9 |
Voltage L2-L3 |
FLOAT 32Bit |
1 |
|
6 |
11 |
Voltage L3-L1 |
FLOAT 32Bit |
1 |
|
7 |
13 |
Current L1 |
FLOAT 32Bit |
1 |
|
8 |
15 |
Current L2 |
FLOAT 32Bit |
1 |
|
9 |
17 |
Current L3 |
FLOAT 32Bit |
1 |
|
10 |
19 |
Apparent power L1 |
FLOAT 32Bit |
1 |
|
11 |
21 |
Apparent power L2 |
FLOAT 32Bit |
1 |
|
12 |
23 |
Apparent power L3 |
FLOAT 32Bit |
1 |
|
13 |
25 |
Effective power L1 |
FLOAT 32Bit |
1 |
|
14 |
27 |
Effective power L2 |
FLOAT 32Bit |
1 |
|
15 |
29 |
Effective power L3 |
FLOAT 32Bit |
1 |
|
16 |
31 |
Reactive power L1 |
FLOAT 32Bit |
1 |
|
17 |
33 |
Reactive power L2 |
FLOAT 32Bit |
1 |
|
18 |
35 |
Reactive power L3 |
FLOAT 32Bit |
1 |
|
19 |
37 |
Current in the neutral conductor |
FLOAT 32Bit |
1 |
|
20 |
39 |
Frequency |
FLOAT 32Bit |
1 |
|
21 |
47 |
Total apparent power |
FLOAT 32Bit |
1 |
|
22 |
49 |
Total effective power |
FLOAT 32Bit |
1 |
|
23 |
51 |
Total reactive power |
FLOAT 32Bit |
1 |
|
24 |
2803 |
Total effective energy |
FLOAT 32Bit |
1 |
|
25 |
2805 |
Total reactive energy |
FLOAT 32Bit |
1 |
