Schneider Power Logic PM800

Generic Modbus profile of the non-proprietary device:

Schneider Power Logic PM800 (PM870MG)

Template name of the profile:

Power Logic PM800

Function test

Function	supported, tested with / Description
Function codes	fc3
Gateways	UMG 605, Firmware 4.051 UMG 604, Firmware 4.068 UMG 96RM-E, Firmware 2.95 (2.30)
Parameter settings	speed 38400 bit/s Address 1
Connection with GridVis
Modbus diagnosis

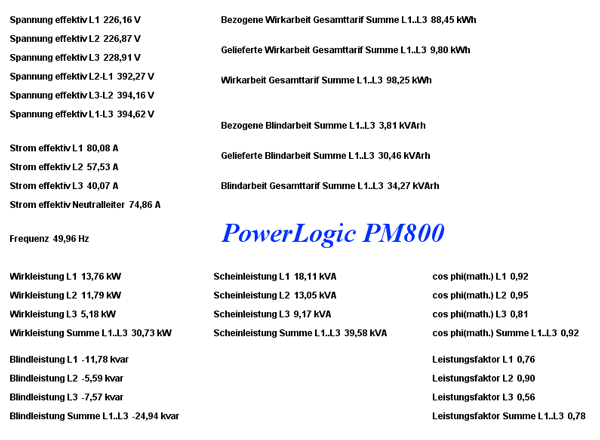

Online recording

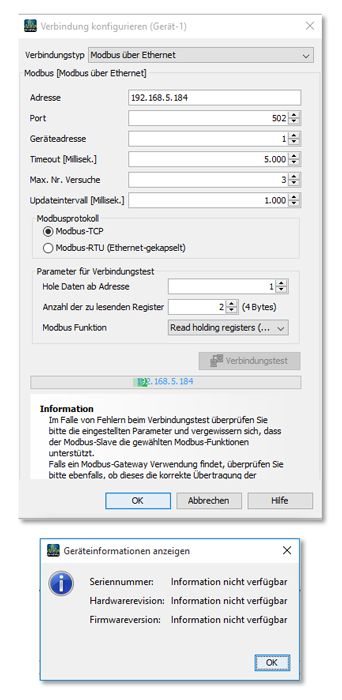

Example: GridVis - Connection

Modbus profile setup Schneider Power Logic PM800

Pos.	Modbus address (dec.)	Value	Format	Scaling
1	11699	Current L1 [A]	FLOAT 32Bit	1
2	11701	Current L2 [A]	FLOAT 32Bit	1
3	11703	Current L3 [A]	FLOAT 32Bit	1
4	11705	Current in neutral conductor L1 [A]	FLOAT 32Bit	1
5	11711	Voltage L2-L1 [V]	FLOAT 32Bit	1
6	11713	Voltage L3-L2 [V]	FLOAT 32Bit	1
7	11715	Voltage L1-L3 [V]	FLOAT 32Bit	1
8	11719	Voltage L1 [V]	FLOAT 32Bit	1
9	11721	Voltage L2 [V]	FLOAT 32Bit	1
10	11723	Voltage L3 [V]	FLOAT 32Bit	1
11	11729	Effective power L1 [W]	FLOAT 32Bit	1000
12	11731	Effective power L2 [W]	FLOAT 32Bit	1000
13	11733	Effective power L3 [W]	FLOAT 32Bit	1000
14	11735	Total effective power L1-L3 [W]	FLOAT 32Bit	1000
15	11737	Reactive power L1 [var]	FLOAT 32Bit	1000
16	11739	Reactive power L1 [var]	FLOAT 32Bit	1000
17	11741	Reactive power L2 [var]	FLOAT 32Bit	1000
18	11743	Total reactive power L1-L3 [var]	FLOAT 32Bit	1000
19	11745	Apparent power L1 [VA]	FLOAT 32Bit	1000
20	11747	Apparent power L2 [VA]	FLOAT 32Bit	1000
21	11749	Apparent power L3 [VA]	FLOAT 32Bit	1000
22	11751	Total apparent power L1-L3 [VA]	FLOAT 32Bit	1000
23	11761	Frequency [Hz]	FLOAT 32Bit	1
24	11753	Power factor L1	FLOAT 32Bit	1
25	11755	Power factor L2	FLOAT 32Bit	1
26	11757	Power factor L3	FLOAT 32Bit	1
27	11759	Total power factor L1-L3	FLOAT 32Bit	1
28	1167	Cos phi L1	Short 16Bit	0.001
29	1168	Cos phi L2	Short 16Bit	0.001
30	1169	Cos phi L3	Short 16Bit	0.001
31	1170	Total Cos phi L1-L3	Short 16Bit	0.001
32	11799	Drawn real energy (HT) L1-L3 [Wh]	FLOAT 32Bit	1
33	11801	Drawn reactive energy L1-L3 [kVarh]	FLOAT 32Bit	0.001
34	11803	Delivered real energy L1-L3 [Wh]	FLOAT 32Bit	1
35	11805	Delivered reactive energy L1-L3 [kVarh]	FLOAT 32Bit	0.001
36	11807	Real energy L1-L3 [Wh]	FLOAT 32Bit	1
37	11809	Reactive energy L1-L3 [Varh]	FLOAT 32Bit	1
