Schneider Power Logic PM5561

Generic Modbus profile of the non-proprietary device:

Schneider Power Logic PM5561

Template name of the profile:

Power Logic PM5561

Function test

Function	supported, tested with / Description
Function codes	fc1, fc2, fc03, fc04, fc10
Gateways	UMG 604, Firmware 4.051 UMG 96RM-E, Firmware 2.90 (2.27)
Parameter settings	speed 38400 bit/s Address 1
Connection with GridVis
Modbus diagnosis
Online recording

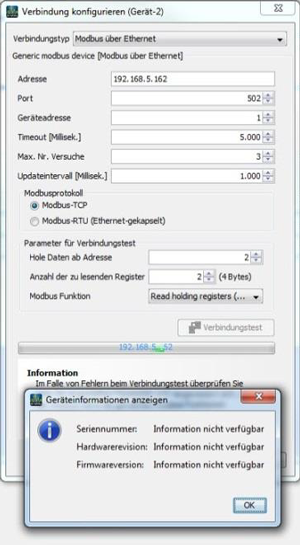

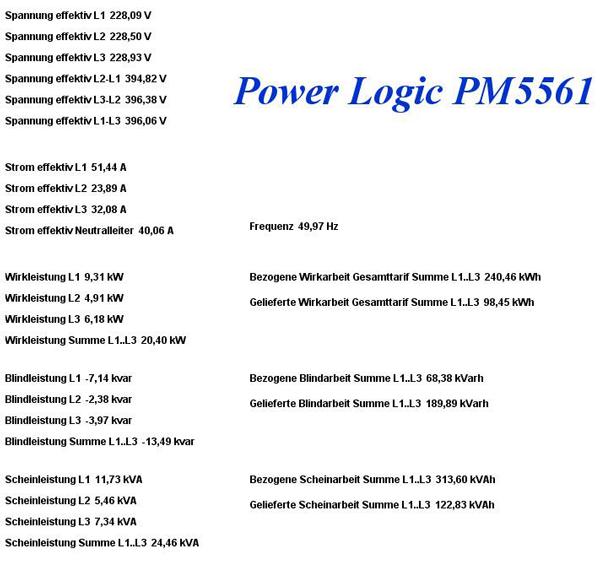

Example: GridVis - Connection

Modbus profile setup Schneider Power Logic PM5561

Pos.	Modbus address (dec.)	Value	Format	Scaling
1	3027	Voltage L1 [V]	FLOAT 32Bit	1
2	3029	Voltage L2 [V]	FLOAT 32Bit	1
3	3031	Voltage L3 [V]	FLOAT 32Bit	1
4	3019	Voltage L2-L1 [V]	FLOAT 32Bit	1
5	3019	Voltage L3-L2 [V]	FLOAT 32Bit	1
6	3023	Voltage L1-L3 [V]	FLOAT 32Bit	1
7	2999	Current L1 [A]	FLOAT 32Bit	1
8	3001	Current L2 [A]	FLOAT 32Bit	1
9	3003	Current L3 [A]	FLOAT 32Bit	1
10	3005	Current in neutral conductor L1 [A]	FLOAT 32Bit	1
11	3059	Total effective power L1-L3 [W]	FLOAT 32Bit	1000
12	3053	Effective power L1 [W]	FLOAT 32Bit	1000
13	3055	Effective power L2 [W]	FLOAT 32Bit	1000
14	3057	Effective power L3 [W]	FLOAT 32Bit	1000
15	3067	Total reactive power L1-L3 [var]	FLOAT 32Bit	1000
16	3061	Reactive power L1 [var]	FLOAT 32Bit	1000
17	3063	Reactive power L2 [var]	FLOAT 32Bit	1000
18	3065	Reactive power L3 [var]	FLOAT 32Bit	1000
19	3075	Total apparent power L1-L3 [VA]	FLOAT 32Bit	1000
20	3069	Apparent power L1 [VA]	FLOAT 32Bit	1000
21	3071	Apparent power L2 [VA]	FLOAT 32Bit	1000
22	3073	Apparent power L3 [VA]	FLOAT 32Bit	1000
23	3109	Frequency [Hz]	FLOAT 32Bit	1
24	3203	Drawn real power L1-L3 [Wh]	Int 64Bit	1
25	3207	Delivered real energy L1-L3 [Wh]	Int 64Bit	1
26	3219	Drawn reactive energy L1-L3 [Varh]	Int 64Bit	0.001
27	3223	Delivered reactive energy L1-L3 [Varh]	Int 64Bit	0.001
28	3235	Drawn apparent energy L1-L3 [kVarh]	Int 64Bit	0.001
29	3239	Delivered apparent energy L1-L3 [kVarh]	Int 64Bit	0.001
