TIP NOVA 5//1 A MID-4L, Three-phase transformer counter

Function codes

fc3, fc4

Gateways

ProData2, Firmware 1.35
UMG 508, Firmware 2.052

Parameter settings

• speed 19200 bit/s

• Address 1

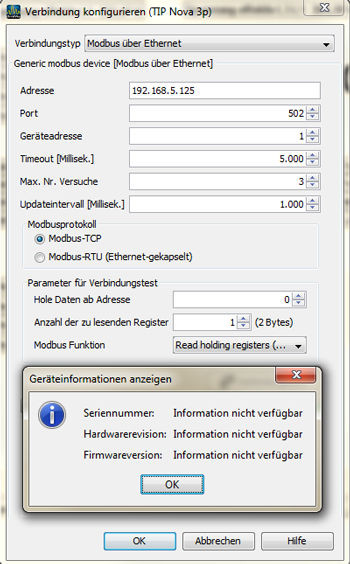

Connection with GridVis

Modbus diagnosis

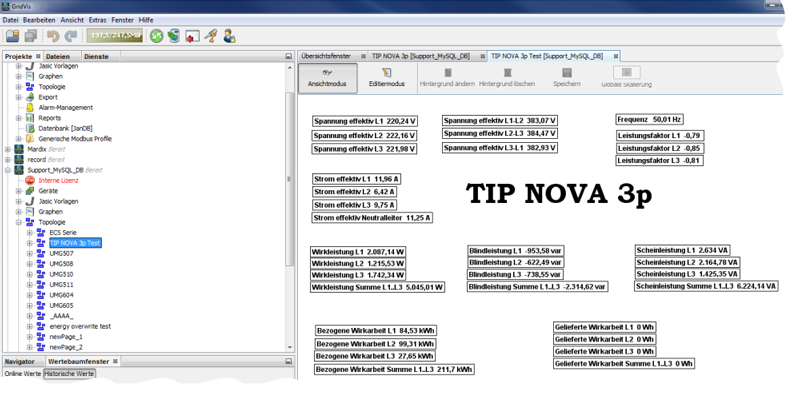

Online recording

1

4096

Voltage L1

Float 32Bit

1

2

4098

Voltage L2

Float 32Bit

1

3

4100

Voltage L3

Float 32Bit

1

4

4102

Voltage L1-L2

Float 32Bit

1

5

4104

Voltage L2-L3

Float 32Bit

1

6

4106

Voltage L3-L1

Float 32Bit

1

7

4110

Current L1

Float 32Bit

1

8

4112

Current L2

Float 32Bit

1

9

4114

Current L3

Float 32Bit

1

10

4116

Current in N

Float 32Bit

1

11

4120

Power factor L1

Float 32Bit

1

12

4122

Power factor L2

Float 32Bit

1

13

4124

Power factor L3

Float 32Bit

1

14

4128

Effective power L1

Float 32Bit

1

15

4130

Effective power L2

Float 32Bit

1

16

4132

Effective power L3

Float 32Bit

1

17

4134

Total effective power

Float 32Bit

1

18

4136

Apparent power L1

Float 32Bit

1

19

4138

Apparent power L2

Float 32Bit

1

20

4140

Apparent power L3

Float 32Bit

1

21

4142

Total apparent power

Float 32Bit

1

22

4144

Reactive power L1

Float 32Bit

1

23

4146

Reactive power L2

Float 32Bit

1

24

4148

Reactive power L3

Float 32Bit

1

25

4150

Total reactive power

Float 32Bit

1

26

4152

Frequency

Float 32Bit

1

27

4352

Drawn real power L1

Float 32Bit

1

28

4354

Drawn real power L2

Float 32Bit

1

29

4356

Drawn real power L3

Float 32Bit

1

30

4358

Total drawn real power

Float 32Bit

1

31

4360

Delivered real energy L1

Float 32Bit

1

32

4362

Delivered real energy L2

Float 32Bit

1

33

4364

Delivered real energy L3

Float 32Bit

1

34

4366

Total delivered real energy

Float 32Bit

1
