Profiles

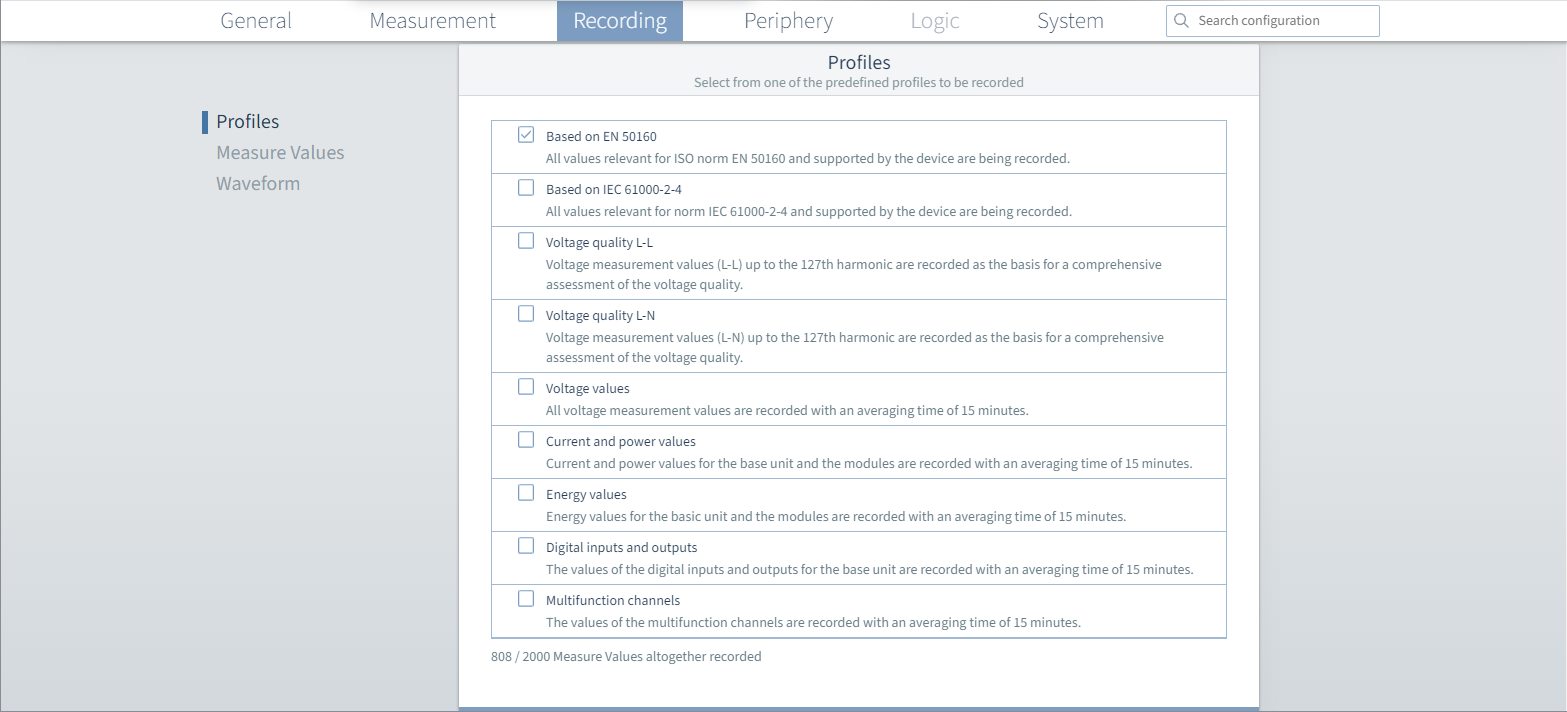

Profile preselection
Select from predefined recording profiles for the UMG 801 from the list.
These profiles consist of a set of frequently used measured values and simplify the configuration of the recording.
|
Recording profiles |
Description |
|
Based on EN 50160 |
Measured values by voltage characteristics in public electricity supply networks. |
|
Based on IEC 61000 2-4 |
Measured values according to EMC standards for low and medium voltage industrial plants. |
|
Voltage quality L-L |
Contains voltage measured values (L-L) up to the 127th harmonic for assessing the power quality. |
|
Voltage quality N-L |
Contains voltage measured values (L-N) up to the 127th harmonic for assessing the power quality. |
|
Voltage values |
Contains all measured voltage values with an averaging time of 15 m. |
|
Current and power values |
Contains current and power measured values of the basic device with modules with an averaging time of 15 m. |
|
Energy values |
Contains work measured values of the basic device with modules with an averaging time of 15 m. |
|
Digital inputs and outputs |
Contains measured values of the digital inputs and outputs of the basic device with an averaging time of 15 m. |
|
Multifunction channels |
Contains measured values of the multifunction channels with an averaging time of 15 m. |
