Waveform
What do I need the waveform setting for?
Events and transients

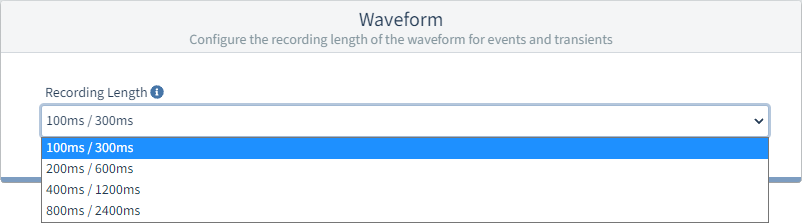

Select the recording length for the start and end of the waveform recording. The entries in the drop-down menu consist of the lead time and the lag time.
Choices:
100 / 300 ms
200 / 600 ms
400 / 1200 ms
800 / 2400 ms
Note
With the maximum sampling rate of 50 kHz, a recording length of max. 400 ms is achieved. A longer recording length reduces the sampling rate and thus the resolution of the event recording.
