Recording

Measured values

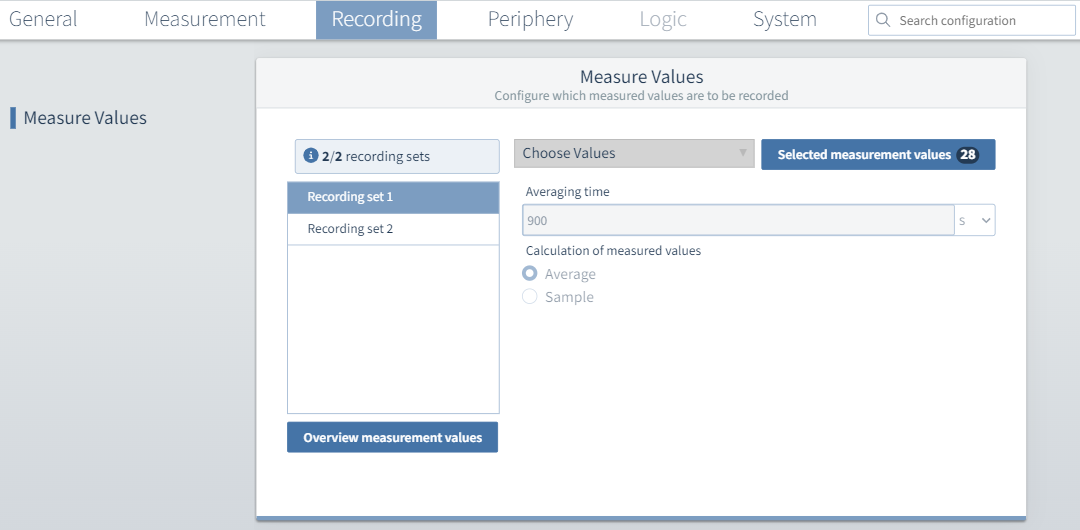

Recording sets: This area provides you with an overview of the measured values of the two recording sets.

To obtain this, select one of the two recording sets on the left side and display the overview with selected measured values. Alternatively, you can display all measured values by clicking on Overall overview of measured values.

• Recording set 1 contains 15 min. average values

• Recording set 2 contains 60 min. value samples

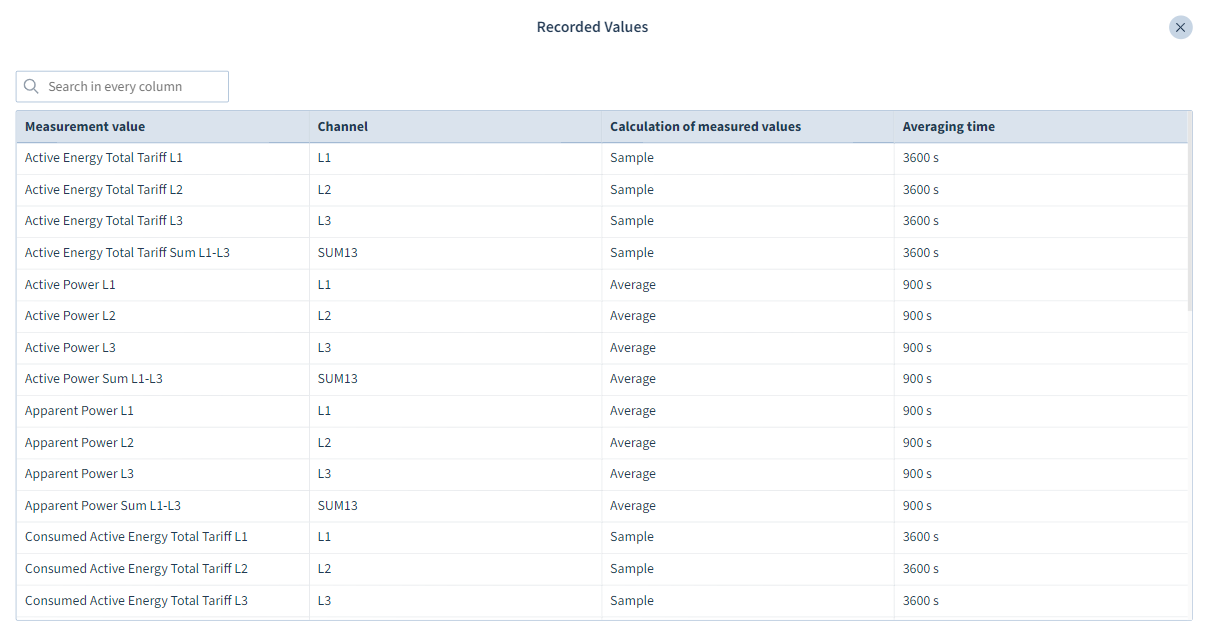

List of measured values currently to be recorded: You are shown the selected measured values here
