Periphery
Note
* This configuration selection is only available if the corresponding module is connected to the measurement device.

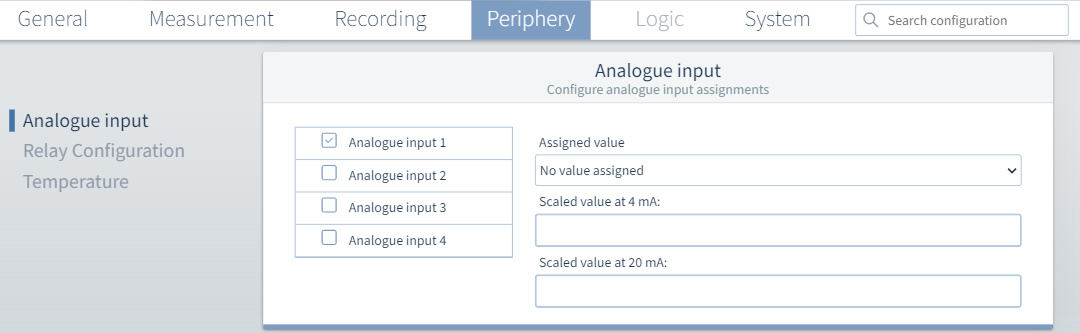

Analog inputs*
You can manage the Analog inputs in this area. Use Assigned value to assign a medium from the drop-down list to the input. Then you can enter the value for 4 mA or for 20 mA of input current.
Relay configuration*
You can configure the relay outputs of your module in this area.
Use Alarm mode to switch the output on and off and select the Remote control function.
Under Alarm triggers, a large selection of triggers is provided in the drop-down menu .
Finally, you can define the parameters for the trigger with Threshold value, Hysteresis and Delay time .

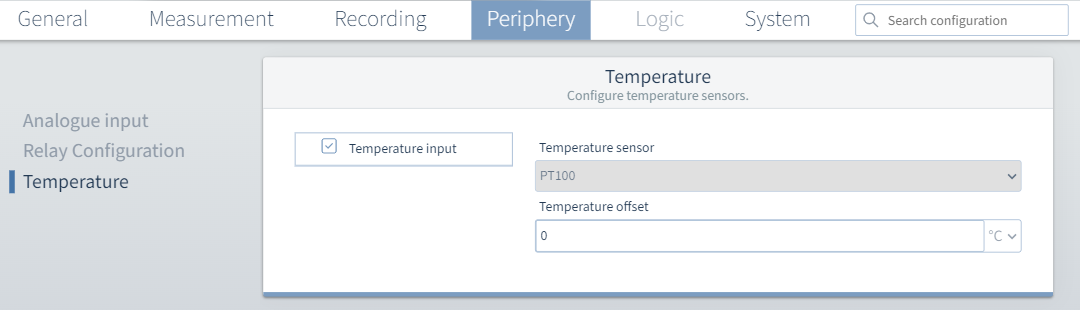

Temperature
Thermistor input: You can set a Temperature offset for the thermistor input here.
In the upper area, you can give the thermistor input a user-defined name.
