Profiles*

Using Profiles allows you to choose between different recording sets. This adjusts the predefined recording sets in Partition A and Partition B so that measured values relevant to the power quality are recorded.

Note

* This configuration card is only available with measurement devices of the PQ-L series with Class S activated.

Profile selection

Select the profile that best fits the application and click the Apply button. Transferring to the measurement device adjusts the recording sets in both partitions.

The following profiles are available:

Analogous to EN 50160:
Analogous to IEEE 519
Analogous to IEC 61000-2-4
Power quality analysis (AHF/SVG):

The profiles offered for selection are based on the respective international standard for power quality, so that the measured values required by the standard are recorded.

If you then customize a recording set in the partitions after profile selection, User defined will be displayed in the Profile selection field.

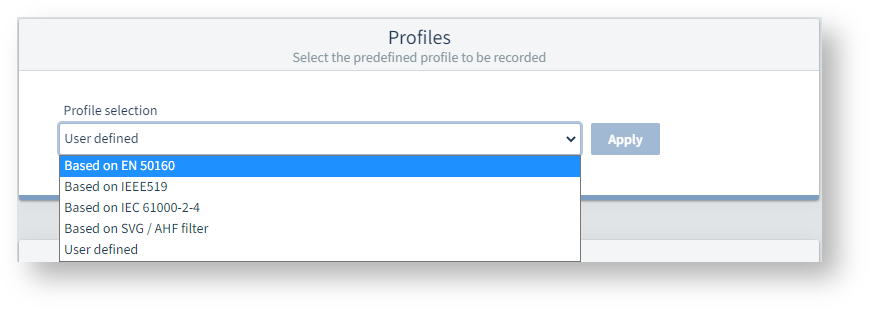

Example image: UMG 96-PQ-L
