Measured values*
This is used to configure which measured values the measurement device records at what interval.
You can program several recording sets with different measured values and averaging times.
Several recording sets are already predefined. You can customize these, or create additional recording sets.
Note
For devices of the PQ-L series, there is a separate Measured values configuration card for partitions A and B.
There is only one Measured values configuration card for devices of the PA series.
How to check which measured values are recorded:
First select the recording set.
Click the Selected measured values button to display the programmed measured values of this set.
Click the button Overall overview of measured values to display the programmed measured values of all sets.
How to change the recorded measured values:
First select the recording set.
Click the Select measured values drop-down list.
Set the Averaging time and Measured value calculation.

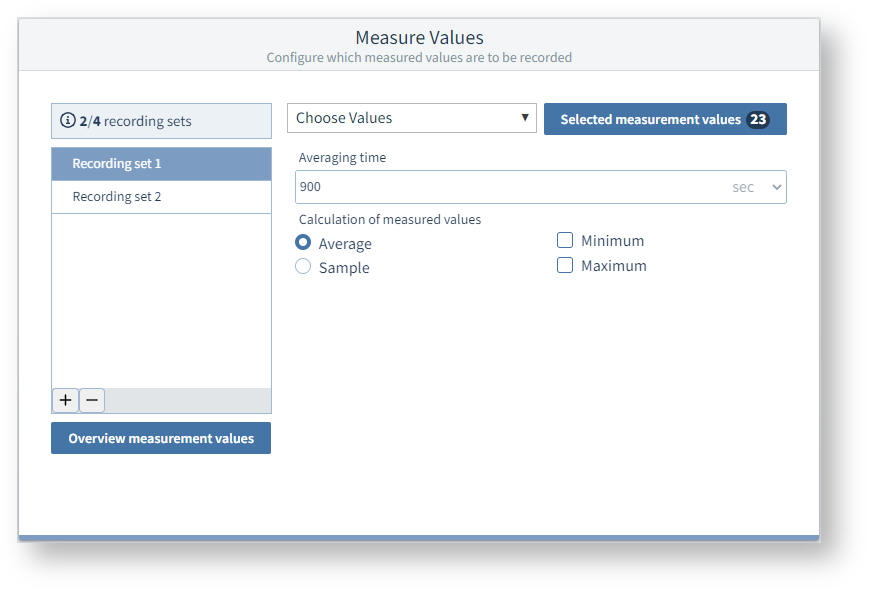

Example image: UMG 96-PA-MID+
|
Measured value calculation |
Meaning |
|
Average value (arithmetic) |
Arithmetic mean of the measured values over the specified time interval. |
|
RMS * |
Root-mean-square value of the measured values over the specified time interval. * only available with PQ-L series |
|
Sample |
Measured value (instantaneous value) at the end of the specified time interval, i.e. no averaging. |
|
Maximum / Minimum |
Maximum or minimum values in the time interval |
Settings
Measured values / Measured values - Partition A / Measured values - Partition B
Devices of the PQ-L series have two partitions, A and B. The separate partitions enable faster memory access. However, the way they are visualized on the configuration cards is identical to the devices of the PA series.
Measured values - Partition A
For long-term recording of multiple recording sets.
Measured values - Partition B
For detailed recordings that can be optionally started by triggering.
Selected measured values
The button shows the number of measured values in this recording set.
Press the button to see which measured values are recorded in this recording set.
Overall overview of measured values
Press the button to see which measured values are recorded in one of the recording sets.

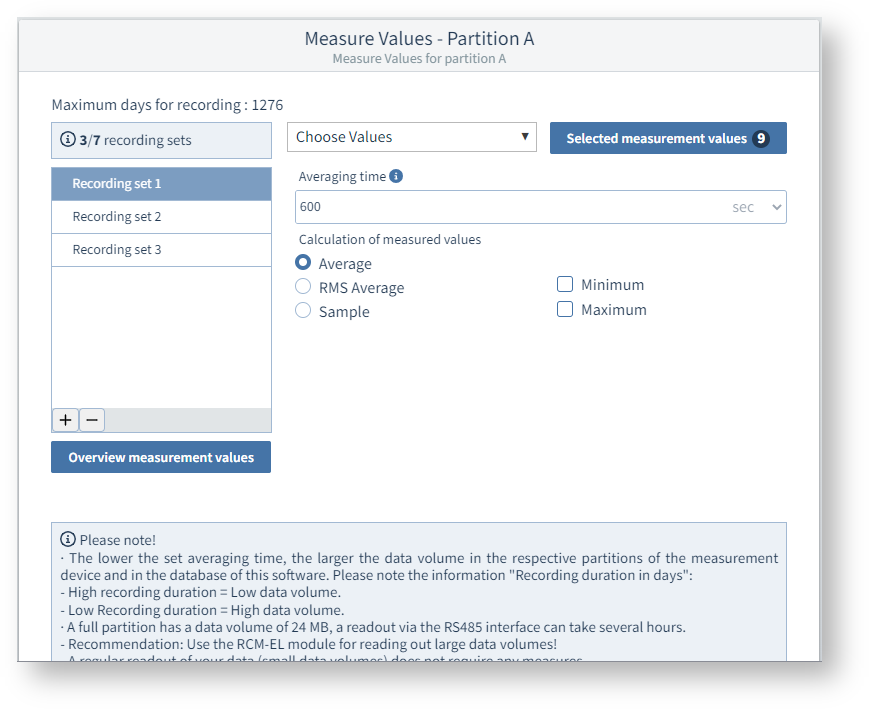

Example image: UMG 96-PQ-L
