Temperature
The measurement device can record temperatures via an externally connected temperature sensor.
Note
* This configuration card is available only if the measurement device is equipped with the 96-PA-RCM-EL module.

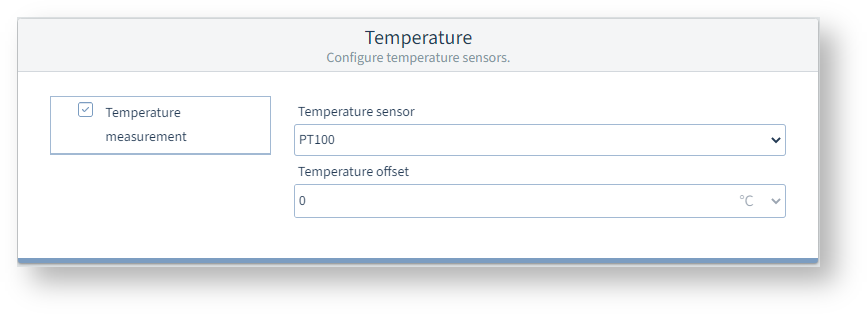

Temperature sensor
Select the type of temperature sensor.
Temperature offset
Use this field if the connected temperature sensor has a deviation relative to a more accurate reference thermometer.
Example:
The actual reference temperature is 1.5 °C higher than the temperature indicated by the temperature sensor on the measurement device.
In this case, set the value +1.5 in the Temperature offset field.
