Parameters LMC, LMC-LITE, EMC

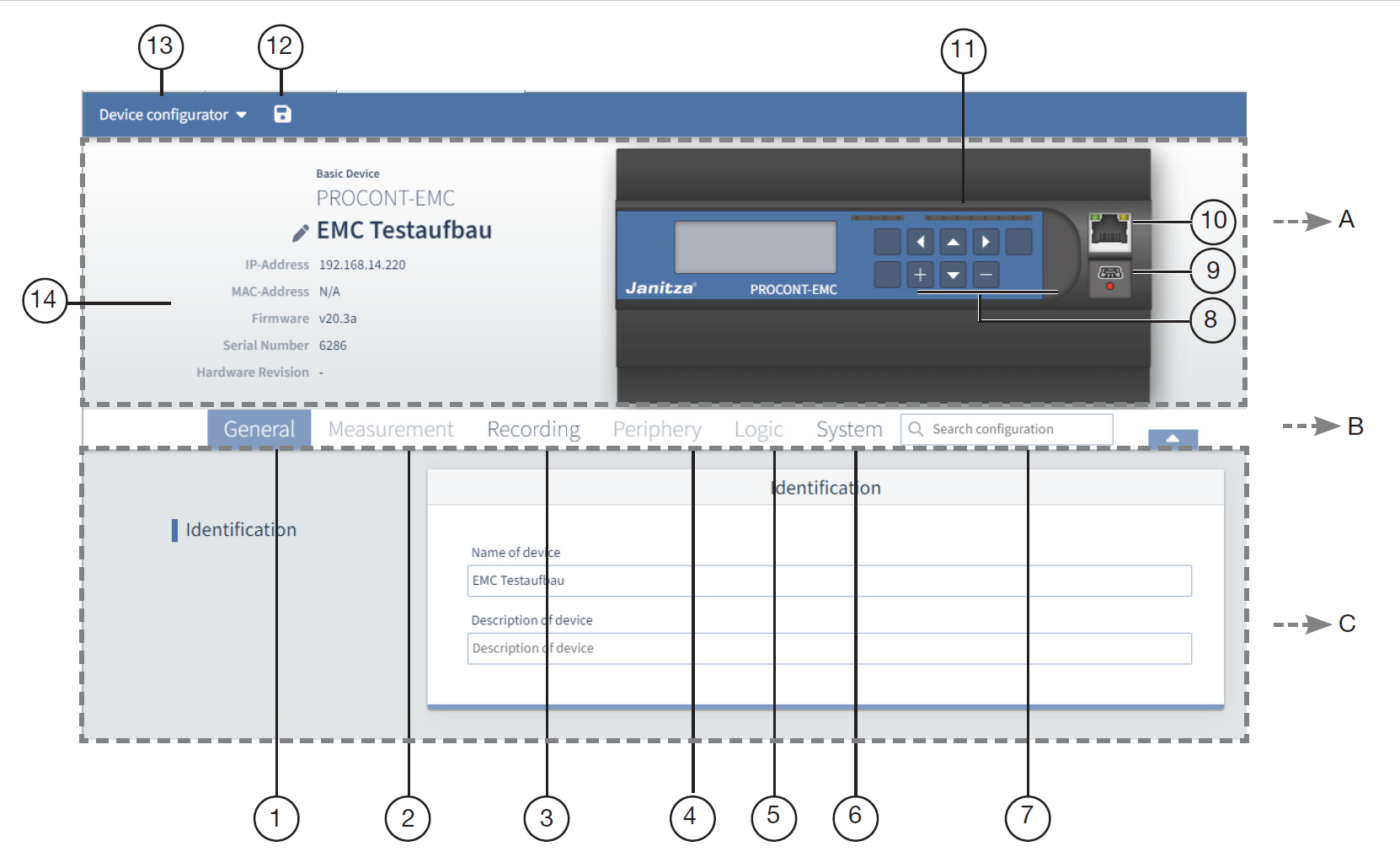

Area

Description

A - Info & Configuration

In this section you will find basic information about the device, as well as an overview of the device and its connections.

B - Menu bar

You can quickly navigate to the desired configuration card using the tabs for the corresponding main categories and the search field.

C - Configuration

The lower area shows all the available tabs.

1

General

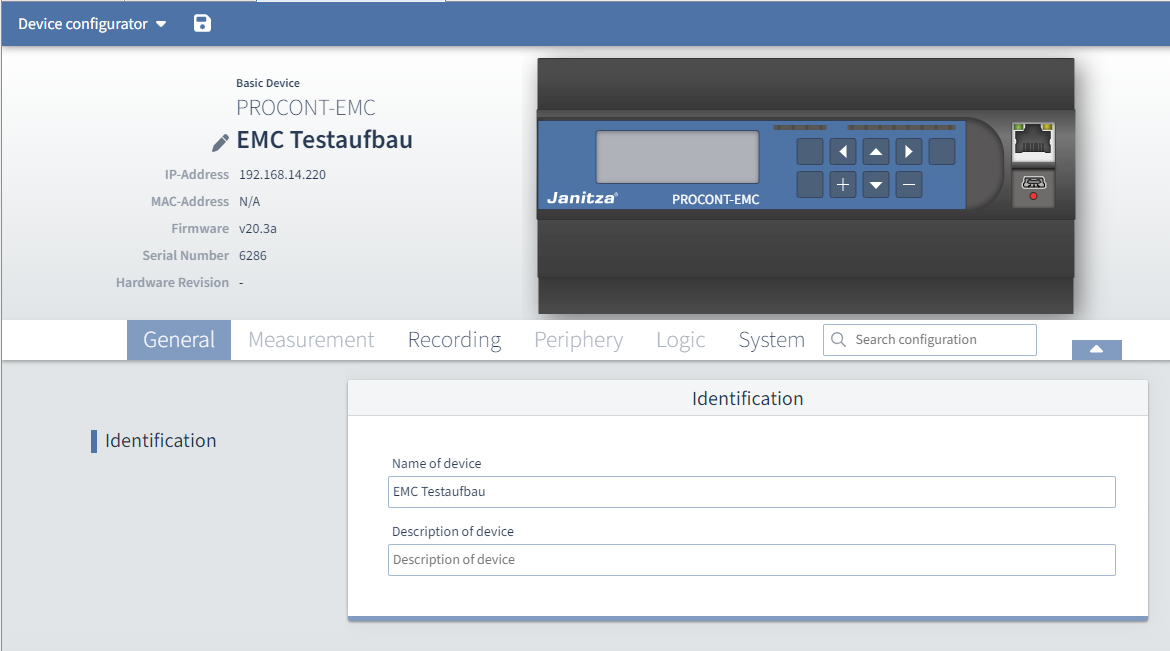

Identification

Name of the device: Enter the freely selectable device name (max. 127 characters)

Description of the device: If desired, enter a freely selectable description of the device (max. 239 characters).

The following parameters are displayed to the left of the device:
- Device type
- Device name
- IP address
- MAC address
- Firmware
- Hardware revision serial number

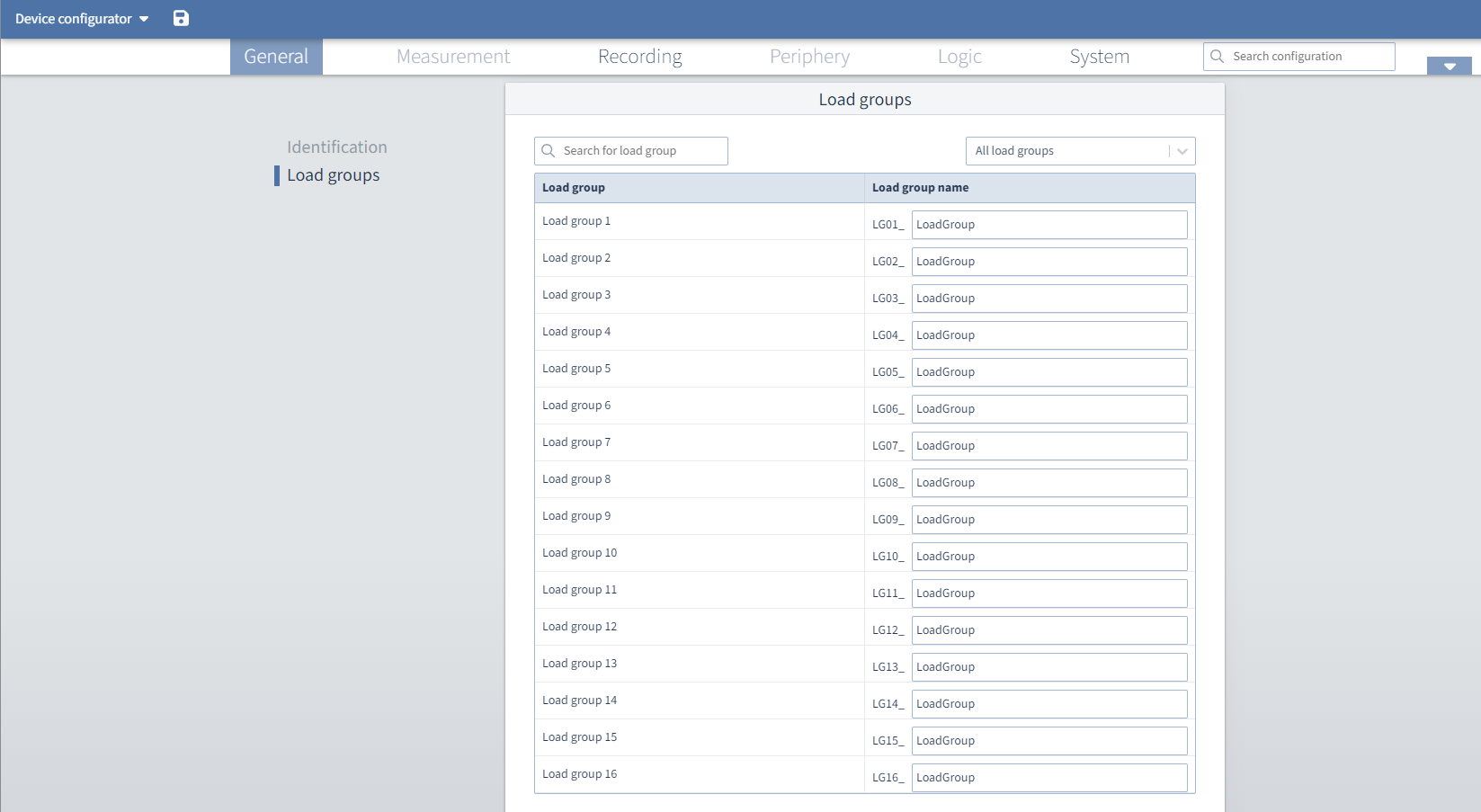

Load groups
(This function is only possible with PROCONT-LMC and LMC-LITE devices.)

Load group configuration

• PROCONT LMC: 1-128

• PROCONT LMC-LITE: 1-16

• PROCONT EMC: -

You can assign names to the load groups. You can search for load groups and also for faulty load group names.

2

Measurement

Not available at this time

3

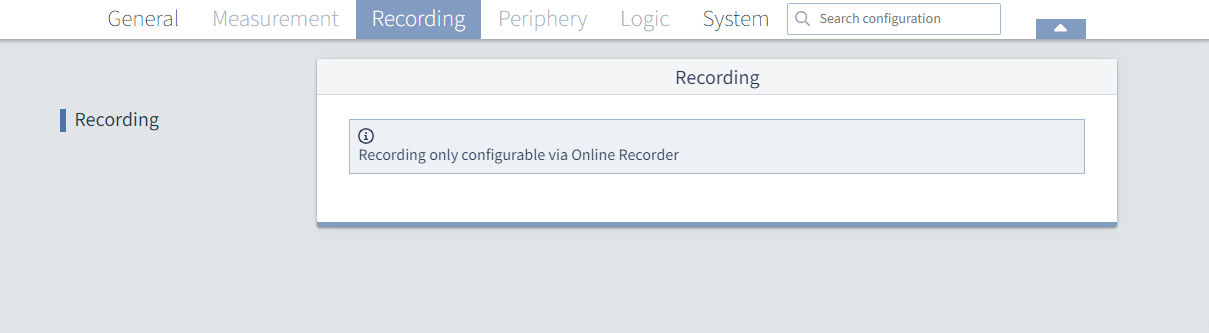

Recording

Configure the recording via the Online Recorder. You can select this function via the GridVis WebVersion under Management → Online Recorder.

4

Peripherals

Not available at this time

5

Logic

Not available at this time

6

System

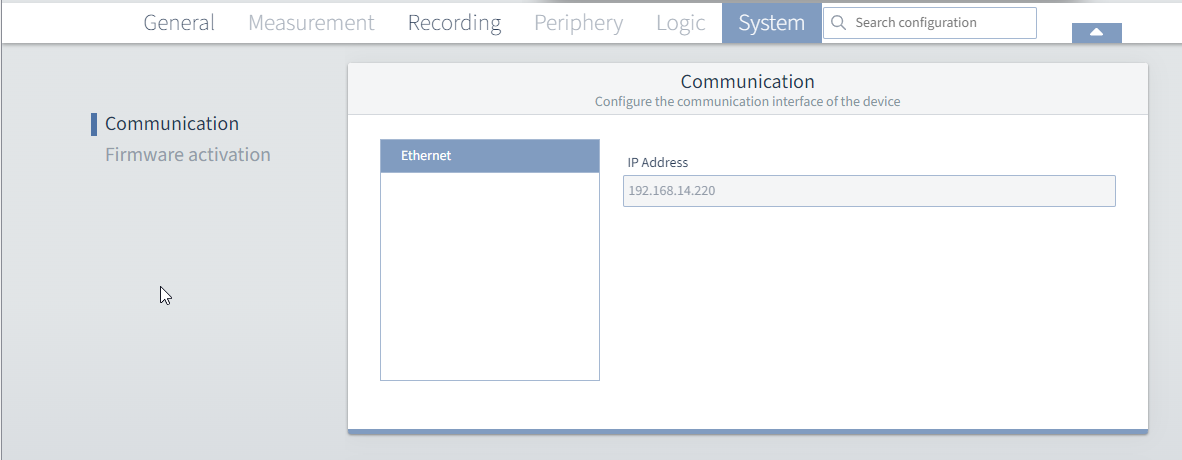

Communication

Select the device communication interface

Ethernet interface

The Ethernet interface IP address is displayed.

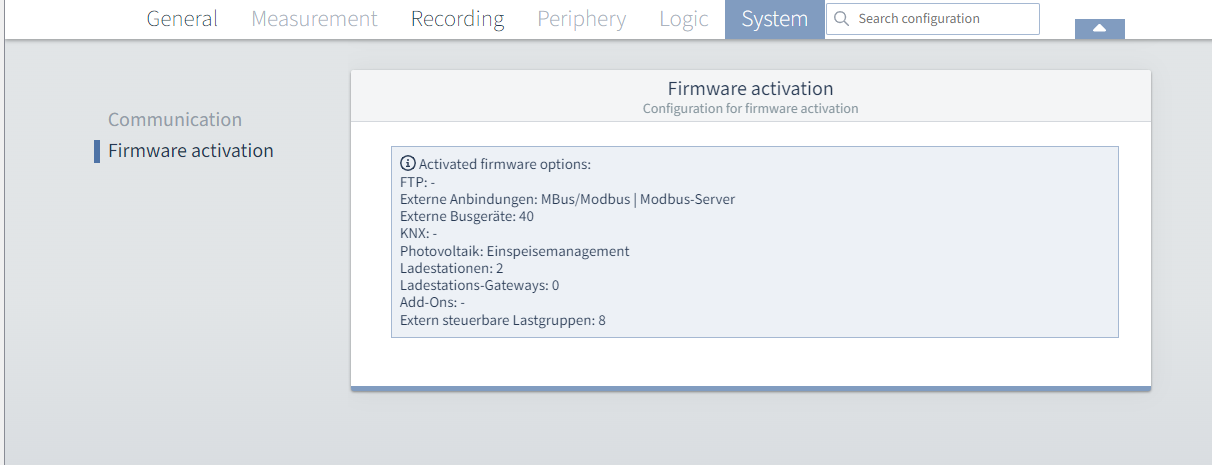

Firmware activation

Information about the enabled firmware activations:
- FTP
- External connections
- Number of external bus devices
- KNX
- Photovoltaics
- Number of charging stations
- Number of charging station gateways
- Add-ons
- Number of externally controllable load groups

7

Search configuration

Entering a keyword takes you directly to the corresponding menu.

8

9-key keypad

Panel

9

USB interface

For service purposes only

10

Ethernet interface

Ethernet TCP/IP (100BaseT)

11

Status LED

Status LED (inputs/outputs)
LED on = I/O active, LED off = I/O inactive

12

Diskette icon

• Select the diskette icon.
  INFO: The configuration is saved locally in the GridVis project.

• Changes to the configuration can be made directly on the device or via the ProcontVIS software.

13

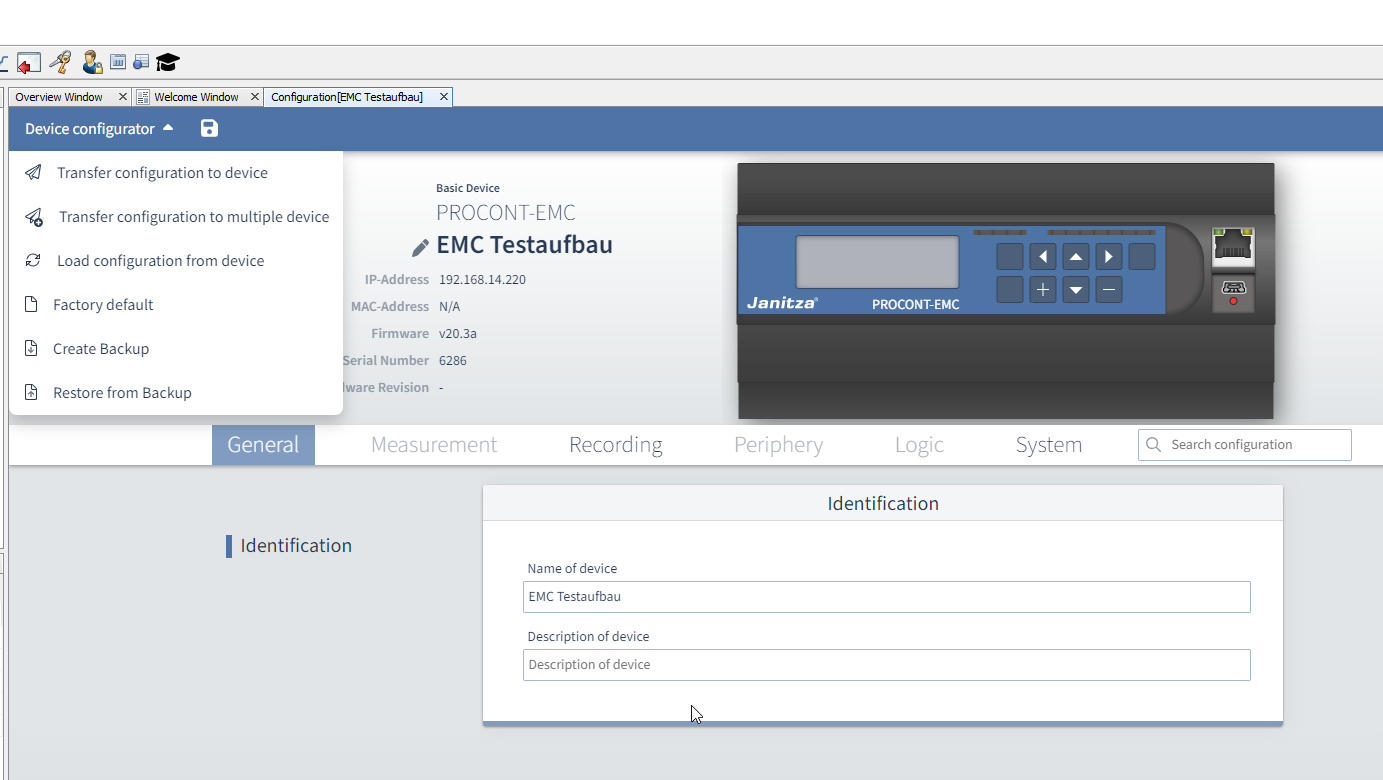

Device configurator

In the drop-down menu of the device configurator, select

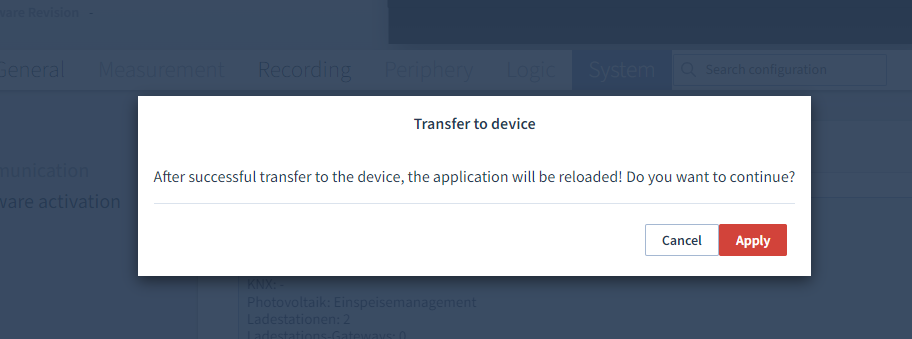

• Transfer configuration to device

• Transfer configuration to multiple devices

• Load configuration from device

• Standard factory setting

• Create backup (specifying a file name allows you to save a backup of the device configuration)

• Restore backup (selecting a file allows you to restore a backup of the device configuration)
