Comparison of measured values between the energy recording report and meters
Meters with the MID+ function measure and store the quarter-hourly measured values in a legally compliant and tamper-proof manner. All stored measured values of the energy recording can be called up via the device display.
The raw data from the GridVis energy recording report can thus be verified against the values stored in the meter (e.g. during acceptance by an auditor).

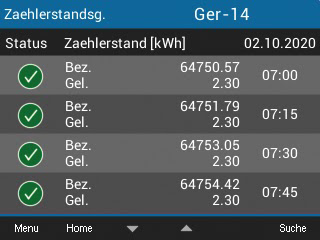

Fig. 1: Device display with energy recording

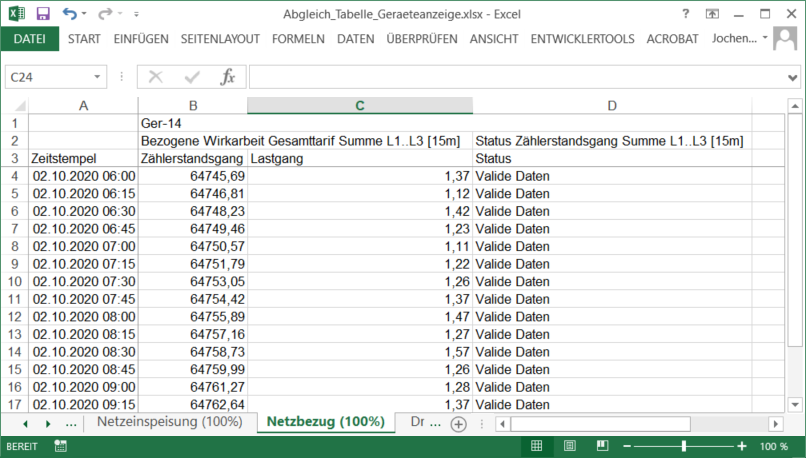

Fig. 2: Raw data from the GridVis energy recording report

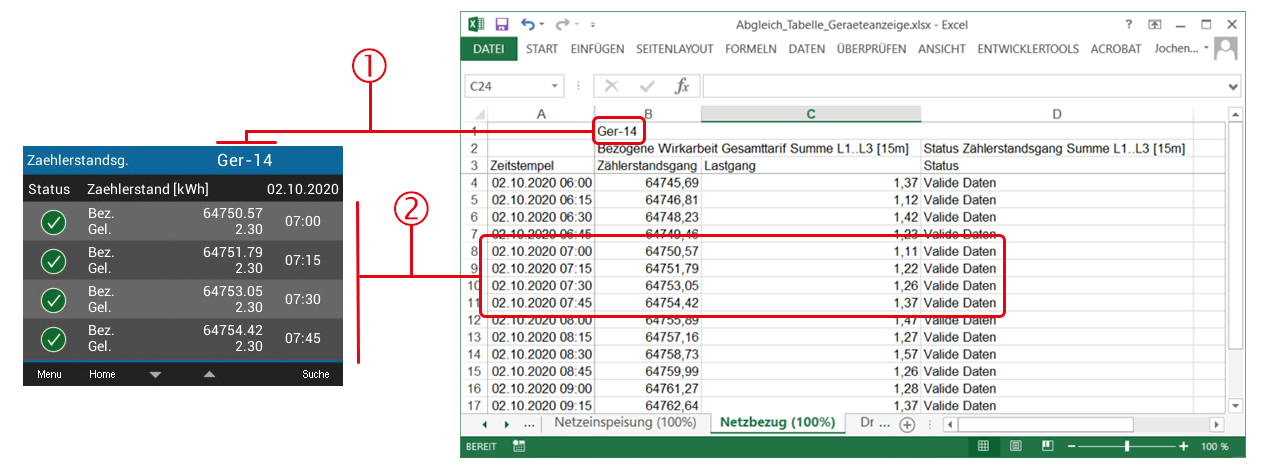

Verification of the raw data of the energy recording report via the device display
|
Position |
Description |
|
1 |
Designation of the meter or measurement point |
|
2 |
Measured values of the energy recording with status |

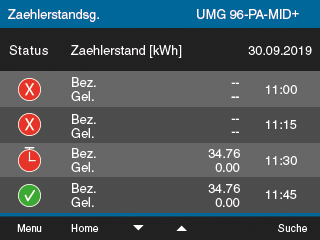

Status of the measured values
The quarter-hourly measured values are invalid if:
The last time synchronization was more than seven days ago (unsynchronized data).
No time is set (invalid data).
The device was switched off within the 15-minute measurement period (invalid data).
|
Symbol |
Description |
|
|
Valid data |
|
|
Invalid data |
|
|
Unsynchronized data |
