Example of a report according to the German Federal Network Agency
The Federal Network Agency supervises various requirements of the EEG . This includes the proper handling of the collection of the EEG apportionment (e.g. including for self-supply arrangements).
In order to establish a uniform understanding of the regulations on measurement and estimation, the Federal Network Agency has published the Guideline on measurement and estimation for EEG apportionment obligations . It serves as an orientation aid for the citizens and companies concerned in order to promote practical and uniform application practice and to reduce the existing legal uncertainties.
This guide uses specific examples to illustrate the implementation of the regulations. In the following, one of these examples is used and presented based on the GridVis energy recording report. A comparison then illustrates how the energy recording report implements the recommendations of the Federal Network Agency.
Application example: Combination of the voluntary subordination rule with quarter-hourly measurement
(Corresponds to example 27 in the Guide to measurement and estimation for EEG apportionment obligations of the Federal Network Agency: Example27.pdf )

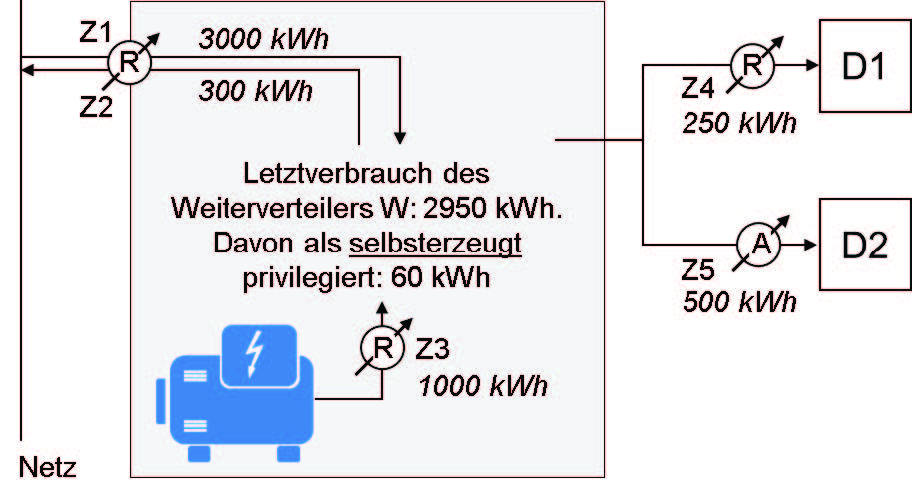

Numerical example of the application of the voluntary subordination rule when using quarter-hourly meters (R) and work meters (A)
|
Element |
Explanation |
Measured amount of electricity |
|
Z1 |
Grid feed consumed |
3000 kWh |
|
Z2 |
Grid feed delivered |
300 kWh |
|
Z3 |
Self-generation |
1000 kWh |
|
Z4 |
First third-party consumption |
250 kWh |
|
Z5 |
Second third-party consumption |
500 kWh |
|
D1 |
First third-party consumer |
|
|
D2 |
Second third-party consumer |
|
|
R |
Quarter-hourly meter: "registering load profile measurement" or an energy recording measurement that provides quarter-hourly values. |
|
|
A |
Work meter: "Work measurement" used to measure the amount of electricity over a period of time (e.g., one year). |
|

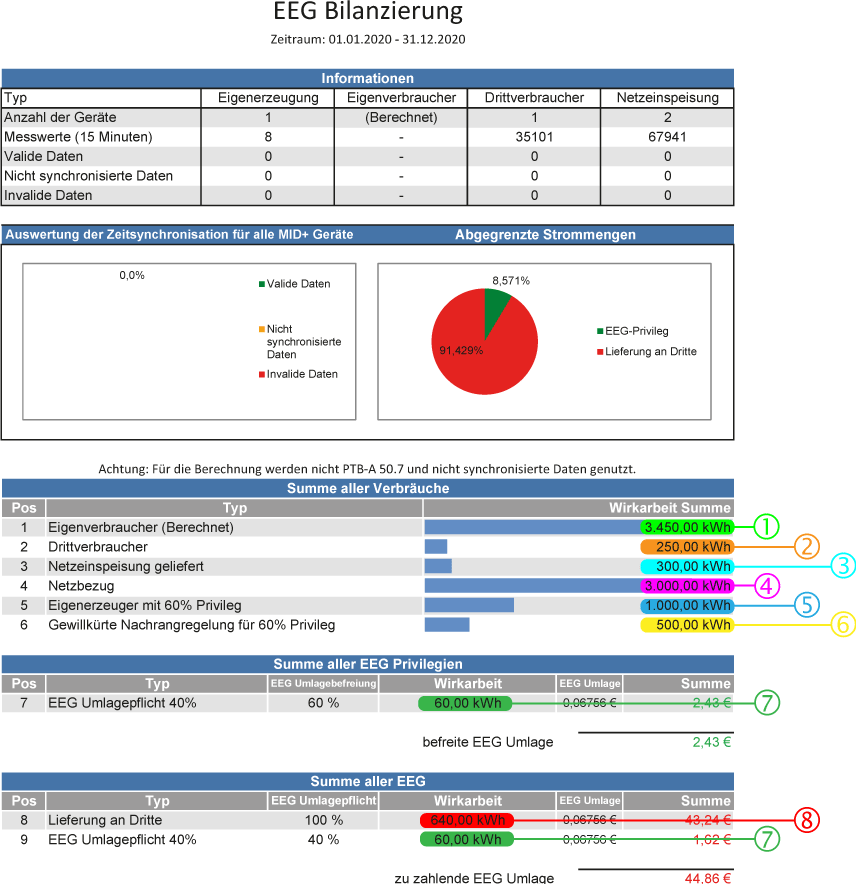

Evaluation with GridVis energy recording report

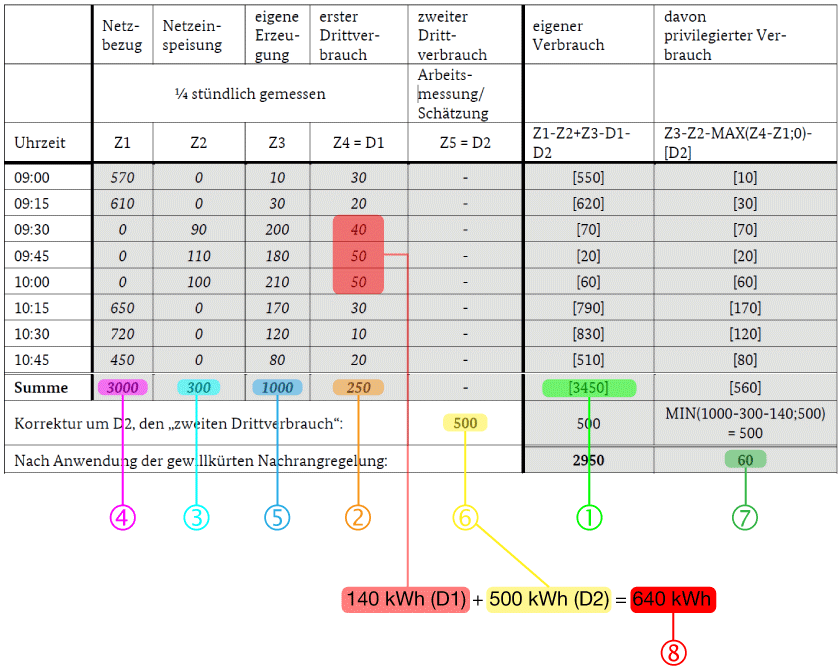

Evaluation according to Federal Network Agency

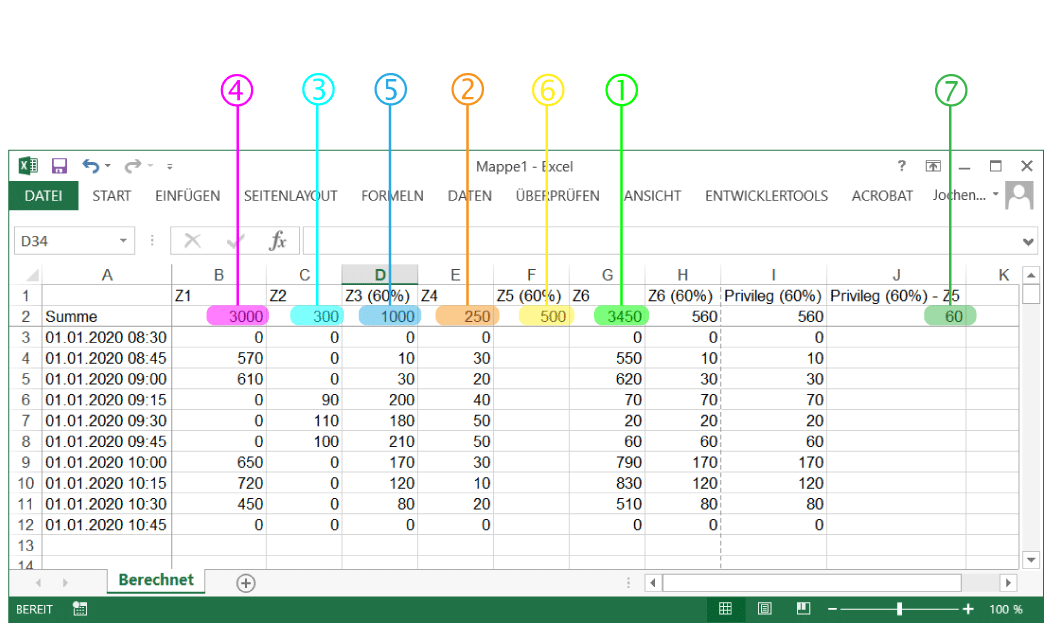

"Calculated" worksheet of the GridVis energy recording report
|
Item |
Meaning |
Meter |
|
1 |
Own consumption |
calculated |
|
2 |
Consumption of the 1st third-party consumer |
Z4 |
|
3 |
Grid feed delivered |
Z2 |
|
4 |
Grid feed consumed |
Z1 |
|
5 |
Self-generation (with EEG privilege) |
Z3 |
|
6 |
Consumption of the 2nd third-party consumer (voluntary subordination rule) |
Z5 |
|
7 |
Own consumption with EEG privilege |
calculated |
|
8 |
Electricity supplied to third parties |
calculated |
