Measurement Circuit

---

How do I specify the mains?

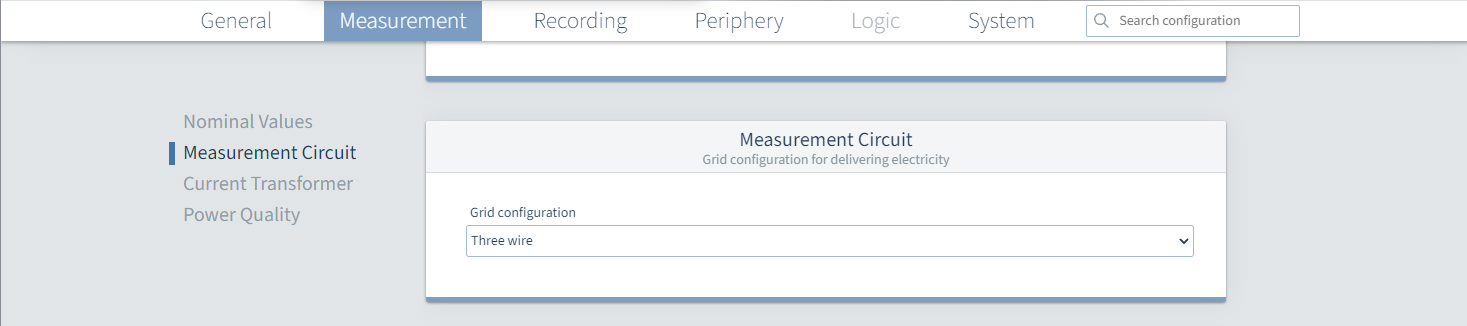

Step 1: Open the Mains tab

To open the configuration of the mains:

• Click the Measure tab on the menu bar.

• Select the Mains configuration card.

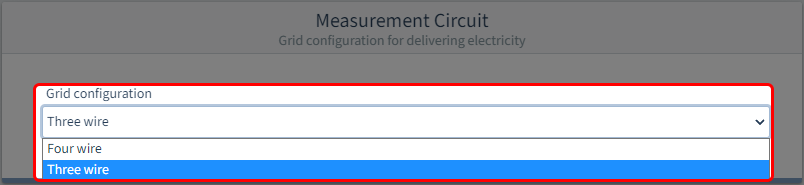

Step 2: Mains configuration

Voltage channel 3 (L2) is deactivated in the three-phase three-wire mains system. In the three-phase three-wire mains system, connect L2 to the N terminal. Select the system of your mains from the drop-down menu.

• Three-phase four-wire

• Three-phase three-wire
