System
Settings
Communication
Ethernet
Click on Ethernet to display the settings.

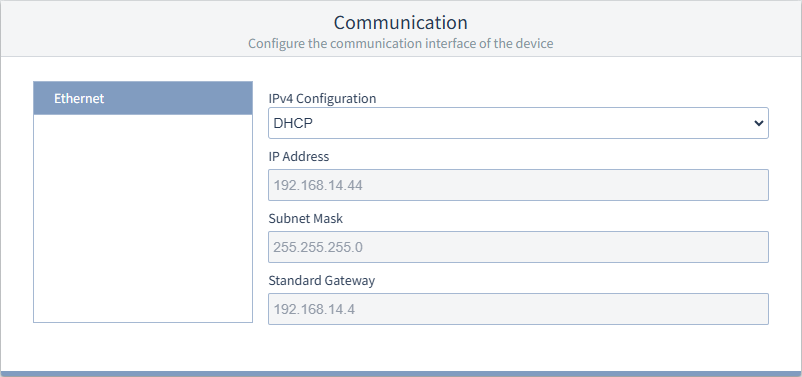

IPv4 configuration
You can choose between different types of address assignment in the network:
Fixed IP address (static): Assign a permanent IP address, netmask and gateway to the device ("Static"). Use this mode for simple networks with no DHCP server.
DHCP: The measurement device is automatically assigned an IP address at startup. The following fields are automatically filled with the assigned values and are grayed out.
Fixed IP address with ARP test: Assign a permanent IP address, netmask and gateway to the device, and the device will automatically log in to the network with IP and MAC address ("Static Gratuitous ARP").
If you decide to use a fixed IP address, you must configure the following settings: IP address, subnet mask and standard gateway.

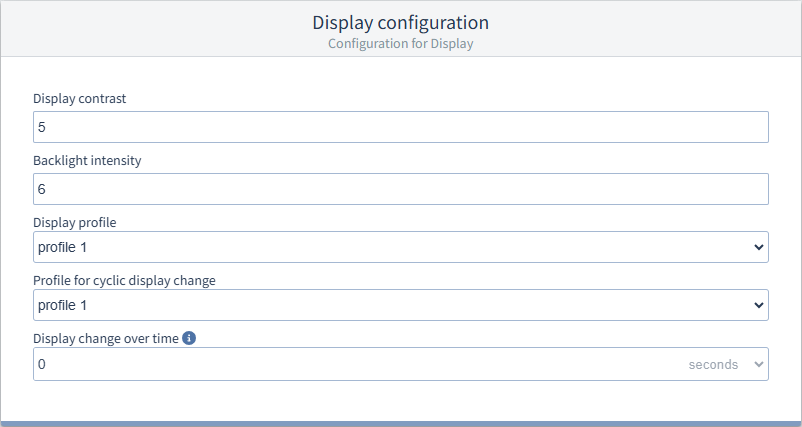

Display settings
These settings allow you to adjust the display to suit ergonomic needs. Reducing the brightness saves energy and can extend the service life of the display.
Display contrast
The contrast of the LCD display can be adjusted in dependence on the viewing angle. The contrast can be set from 0 to 9 in steps of 1:
0 = low, character very bright
9 = high, character very dark
Standard factory setting = 4
Brightness
The brightness of the LCD display can be adjusted in dependence on the viewing angle. The brightness can be set from 0 to 9 in steps of 1:
0 = low, character very bright
9 = high, character very dark
Display profile
The measurement device provides 2 display profiles with different combinations of measuring displays. Profile 1 is the default setting.
You can switch to the next display of the selected display profile by pressing a button on the device.
Profile for automatic display change
The measurement device provides 3 profiles for automatic display change with different combinations of measuring displays.
If a time > 0 seconds is set, the display automatically switches to the next display of the selected display change profile.
Time for automatic display change
After this time, the display shows the next measuring display of the profile for automatic display change.
The automatic display change is deactivated if a time of 0 seconds is set. You can switch to the next display of the normal display profile by pressing a button on the device.
The maximum time is 60 seconds.
The factory setting is 0 seconds.
Passwords

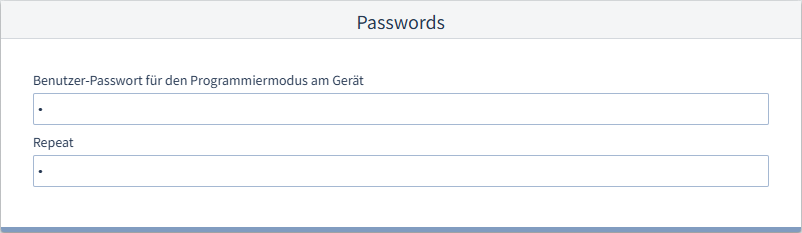

User password for the programming mode on the device
You can change the password here (000..999) that protects the programming mode on the measurement device display from unauthorized access. There is no password request with the setting 000.
Note
Write down the new password and keep it in a safe pace for authorized persons!
If you lose your password, you will need the GridVis software to reset the user password.
