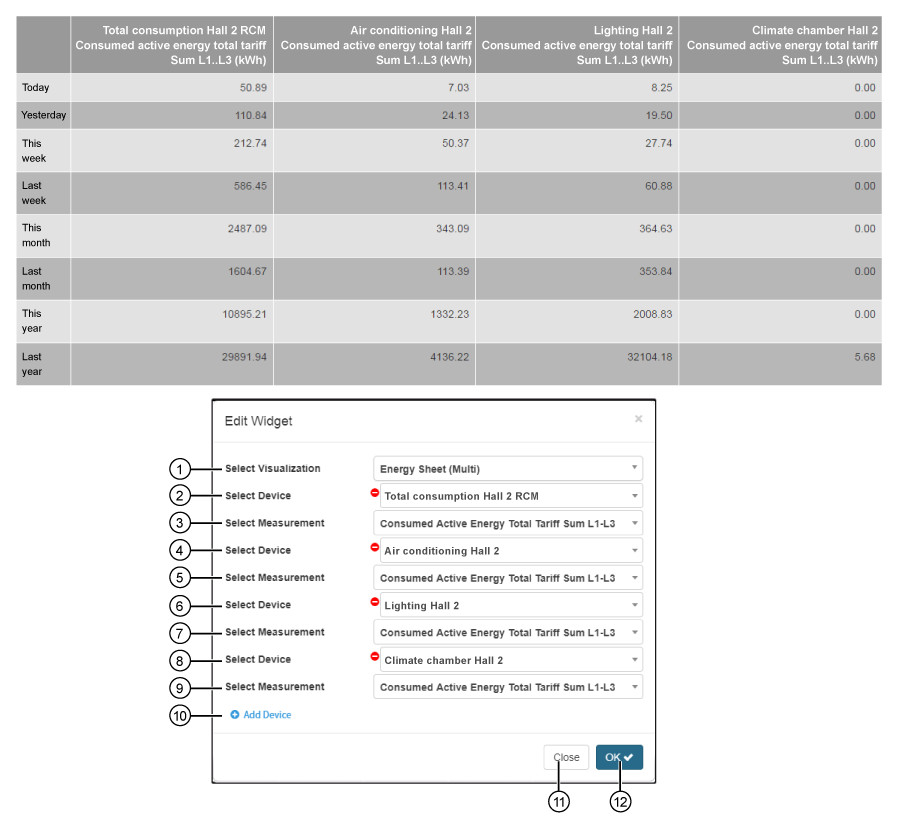

Energy Overview (Multi)

1

• Selection of the Widgets (visualization).

• Energy Overview (Multi) selected.

2

• Selection of the first device.

• Includes all devices with memory (historical data) in your project.

3

• Selection of an energy quantity, of the previously selected device.

4

• Selection of the second device (comparator device).

• Includes all devices with memory (historical data) in your project.

5

• Selection of an energy quantity, of the previously selected device.

6

• Selection of the third device (comparator device).

• Includes all devices with memory (historical data) in your project.

7

• Selection of an energy quantity, of the previously selected device.

8

• Selection of the fourth device (comparator device).

• Includes all devices with memory (historical data) in your project.

9

• Selection of an energy quantity, of the previously selected device.

10

• Creates a new device for your energy overview (multi).

• Configuration of up to 5 devices (1 device plus 4 comparator devices).

11

• Closes the assistant Edit Widgets without saving the entries.

12

• Saves your configuration.

• The Widget appears on the Dashboard.
